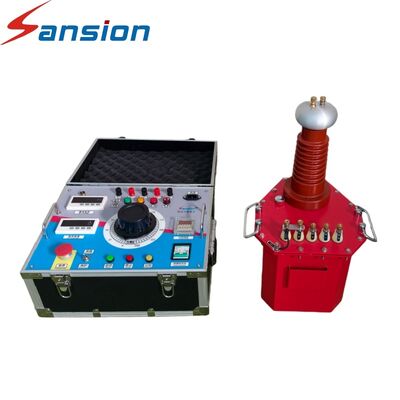

5KVA 50KV AC Withstand Test System for Electrical Equipment Manufacturers Transformer Factory and Laboratory High Voltage Testing

5KVA 50KV AC Withstand Test System for Electrical Equipment Manufacturers Transformer Factory and Laboratory High Voltage Testing
5KVA 50KV AC Withstand Test System for Electrical Equipment Manufacturers Transformer Factory and Laboratory High Voltage Testing
5KVA 50KV AC Withstand Test System for Electrical Equipment Manufacturers Transformer Factory and Laboratory High Voltage Testing 5KVA 50KV AC Withstand Test System for Electrical Equipment Manufacturers Transformer Factory and Laboratory High Voltage Testing 5KVA 50KV AC Withstand Test System for Electrical Equipment Manufacturers Transformer Factory and Laboratory High Voltage Testing 5KVA 50KV AC Withstand Test System for Electrical Equipment Manufacturers Transformer Factory and Laboratory High Voltage Testing

Large Image :  5KVA 50KV AC Withstand Test System for Electrical Equipment Manufacturers Transformer Factory and Laboratory High Voltage Testing

Product Details:
Place of Origin: China
Brand Name: Sansion Power
Certification: CE/SGS/EMS/ISO 9001
Model Number: YDJ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Plywood Case
Delivery Time: 30 Working Days
Payment Terms: L/C,T/T
Contact Now Chat Now

5KVA 50KV AC Withstand Test System for Electrical Equipment Manufacturers Transformer Factory and Laboratory High Voltage Testing

Description
Capacity: 5kVA HV Voltage: 50kV
HV Current AC: 100mA HV Current DC: 15mA
Frequency: 50Hz/60Hz Test Type: AC/DC
Output Stability: Stable Protection System: Complete
Highlight:

5KVA AC withstand test system

,

50KV dielectric test equipment

,

high voltage testing transformer

Product Description

The Power Frequency AC Withstand Test System provides a reliable testing solution for laboratories and professional testing organizations requiring high voltage insulation verification. It is designed to evaluate dielectric strength of electrical equipment, components and insulation materials by applying controlled AC high voltage.

The system combines high voltage generation, voltage adjustment, measurement and safety protection functions in one platform. Its flexible design allows users to select suitable capacity and voltage ratings for research, inspection and standard compliance testing applications.

Product Parameters
Model Capacity (kVA) HV Voltage (kV) HV Current (mA)


AC DC AC DC
YDJ(Z) 1.5/50 1.5 50 70 30 15
YDJ(Z) 3/50 3 50 70 60 15
YDJ(Z) 5/50 5 50 70 100 15
YDJ(Z) 10/50 10 50 70 200 50
YDJ(Z) 20/50 20 50 70 400 100
YDJ(Z) 30/50 30 50 70 600 100
YDJ(Z) 40/50 40 50 70 800 105
YDJ(Z) 50/50 50 50 70 1000 100
Product Advantages
  • Provides stable AC high voltage output for repeatable testing results
  • Suitable for laboratory research and professional inspection
  • Complete protection system ensures safe testing operation
  • Flexible configuration for different insulation test requirements
Application Scenarios
  • High voltage testing laboratories
  • Research institutes
  • Electrical product certification centers
  • University laboratories
FAQ
Q1: What is the main purpose of the Power Frequency AC Withstand Test System?
A: It is mainly used to verify insulation strength of electrical equipment under AC high voltage conditions.
Q2: Can it perform DC high voltage testing?
A: Some configurations support DC high voltage output according to customer requirements.
Q3: What frequency does the system use?
A: It is designed for power frequency AC testing with 50Hz or 60Hz operation.
Q4: Does it support customized solutions?
A: Yes, customized solutions are available for different laboratory testing applications.
5KVA 50KV AC Withstand Test System for Electrical Equipment Manufacturers Transformer Factory and Laboratory High Voltage Testing

Tag:

AC Hipot Tester,

Hypot Series Dielectric Withstand Tester,

AC Withstand Voltage Tester
