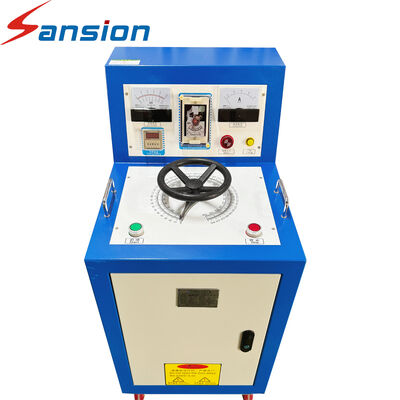

Power Frequency AC Withstand Voltage Test Equipment For Transformer / Motor / Generator /Cable

Power Frequency AC Withstand Voltage Test Equipment For Transformer / Motor / Generator /Cable
Power Frequency AC Withstand Voltage Test Equipment For Transformer / Motor / Generator /Cable
Power Frequency AC Withstand Voltage Test Equipment For Transformer / Motor / Generator /Cable Power Frequency AC Withstand Voltage Test Equipment For Transformer / Motor / Generator /Cable Power Frequency AC Withstand Voltage Test Equipment For Transformer / Motor / Generator /Cable Power Frequency AC Withstand Voltage Test Equipment For Transformer / Motor / Generator /Cable

Large Image :  Power Frequency AC Withstand Voltage Test Equipment For Transformer / Motor / Generator /Cable

Product Details:
Place of Origin: China
Brand Name: Sansion
Certification: CE/SGS/EMS/ISO 9001
Model Number: SXTC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Plywood Case
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Contact Now Chat Now

Power Frequency AC Withstand Voltage Test Equipment For Transformer / Motor / Generator /Cable

Description
Power Supply Voltage: 220/380 V Capacity: 0.5~50 KVA
Control Mode: Manual/Motorized/Fully Automatic/Industrial PC (IPC) Control Printing Function: Available In SXTC-III And SXTC-IV Models
Display Type: Analog/Digital/English Display/USB Interface/PC Display Time Range: 1S ~ 99H
Name: AC Dielectric Test System
Highlight:

AC Withstand Voltage Test Equipment

,

Power Frequency Withstand Voltage Test Equipment

,

Transformer Withstand Voltage Test Equipment

Power Frequency AC Withstand Voltage Test Equipment For Transformer, Motor, Generator And Cable High Voltage Testing

1: General Information:

SXTC Series Power Frequency AC Withstand Voltage Test Equipment is suitable for hipot dielectric withstand test on various power electric products, units, insulating material and etc.

2: Features:
  • Controlling by manual/electric driving/auto at customized.
  • Oil, dry, SF6 gas type transformer is seletable according to user's requirements.
  • High anti interference ability.
  • High voltage (HV) voltage, Low voltage (LV) current, time, three channels testing ways.
  • Real time monitoring HV voltage, LV current.
  • Full protection functions: over-current, zero-starting sound light alarm, power switch protection.
  • New type time rely, wider time range (1S ~ 99H).
  • New type current rely, more precise, more reliable.
  • 5kVA and above Testing Transformer with movable iron wheel. Light weight, small size, easy to move, superior performance.
  • The control tester can be designed to box type, table type, or cabinet type according to user's testing capacity:
    • *5KVA or below, Box type
    • *10KVA or above Table type
    • *50KVA or above Cabinet type.
  • Add rectifying installation to support AC/DC function .(option)
3: Technical Specifications:
Model Power Supply Voltage (V) Capacity (KVA) Control Mode Printing Function Display
SXTC-I 220/380 0.5~50 Manual - Analog / Digital Display
SXTC-II 220/380 0.5-500
External voltage regulator (>100 kVA)		 Motorized - Analog / Digital Display
SXTC-III 220/380 0.5-500
External voltage regulator (>100 kVA)		 Fully Automatic √ English Display / USB Interface (Optional)
SXTC-IV 220/380 0.5-500
External voltage regulator (>100 kVA)		 Industrial PC (IPC) Control √ PC Display
4. Customer FAQ
Q1: What is the SXTC AC Hipot Test Set used for?

A: It is mainly used for AC dielectric withstand voltage testing of transformers, switchgear, cables, motors, electrical components, and insulating materials to verify insulation performance and safety.

Q2: How to choose the suitable model?

A: The model selection depends on the required test voltage, capacity, tested product, testing standards, and automation requirements. We provide customized solutions according to customer needs.

Q3: Can the system be customized?

A: Yes. The transformer type, capacity, control mode, cabinet structure, testing functions, and software configuration can be customized.

Q4: What control modes are available?

A: The SXTC series supports manual control, motorized control, fully automatic control, and industrial PC (IPC) control to meet different testing requirements.

Q5: Can it perform AC/DC withstand voltage tests?

A: Yes. An optional rectifier unit can be added to support both AC and DC withstand voltage testing.

Q6: What safety protections are included?

A: The system includes over-current protection, zero-start protection, emergency alarm, power protection, and other safety functions to ensure reliable operation.

Q7: Does it comply with international standards?

A: Yes. The system can be designed according to IEC, IEEE, ANSI, GB/T, and customer-specific testing standards.

Q8: Do you provide technical support after purchase?

A: Yes. We provide installation guidance, commissioning support, operator training, spare parts supply, and long-term technical service.
