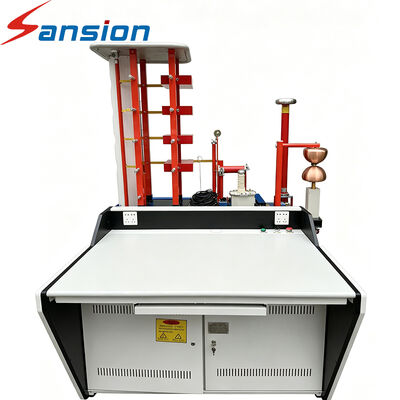

High Precision Automatic Impulse Voltage Generator Lightning Surge Test System for HV Power Component Insulation Testing

Description
Nominal Voltage: ±100 ~ ±4800 KV Impulse Capacitance: 0.0278‑0.5 μF
Stage Capacitance: 0.325‑1 μF Impulse Energy: 7.31‑320 KJ
Stage Voltage: ±100 ~ ±200 KV Number Of Stages: 1‑24
Highlight:

automatic impulse voltage generator

,

high precision lightning surge test system

,

HV power component insulation tester

Product Introduction

The Impulse Voltage Generator is designed to simulate transient overvoltage events and provide controlled impulse stresses for evaluating the dielectric strength and surge withstand capability of high-voltage electrical equipment. It enables manufacturers and testing laboratories to identify potential insulation weaknesses and verify the ability of equipment to withstand severe electrical transients.

Main Feature

  • 8 Impulse Waveform Options
  • Complete System Configuration
  • Stable Performance Under Heavy Loads
  • Efficient High-Voltage Output
  • Easy Operation & Precise Synchronization
  • Automatic Charging Control
  • Digital Waveform Measurement

Specification

Nominal Voltage(kV) Impulse Capacitance(μF) Stage Capacitance(μF) Impulse Energy(KJ) Stage Voltage(kV) Number of Stages
±100 ~ ±400 0.1625‑0.0833 0.325‑0.5 7.31‑33.74 ±100 1‑4
±300 ~ ±900 0.1625‑0.0833 0.325‑0.5 7.31‑33.74 ±150 2‑6
±1050 ~ ±1500 0.0464‑0.05 0.325‑0.5 25.58‑56.25 ±150 7‑10
±1600 ~ ±2400 0.0625‑0.0833 0.5‑1 80‑240 ±200 8‑12
±2800 ~ ±3200 0.0357‑0.0625 0.5‑1 140‑320 ±200 14‑16
±3600 ~ ±4800 0.0278‑0.03125 0.5‑1 80‑240 ±200 18‑24

Application

  • Power Utilities & HV Testing Centers
  • Transformer & Insulation Equipment Manufacturers
  • Independent Testing & Certification Laboratories
  • Universities & High-Voltage Research Institutes
  • HV Switchgear, Arrester & Cable R&D

FAQ

1. Can the SXCY Impulse Voltage Generator be customized?
Yes. Customized configurations are available according to the customer's testing requirements.

2.Does the impulse voltage generator support automatic operation?
The SXCY system can be equipped with an automated control and measurement system for impulse generation, waveform acquisition, data processing, and test result management.
