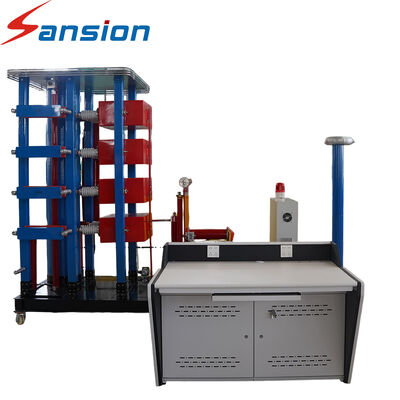

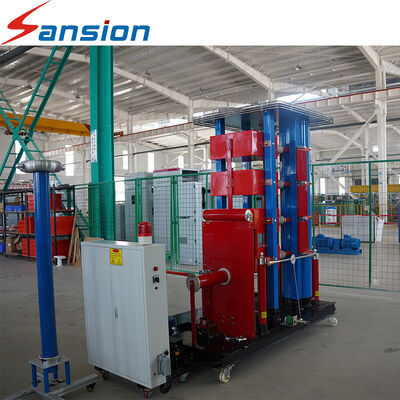

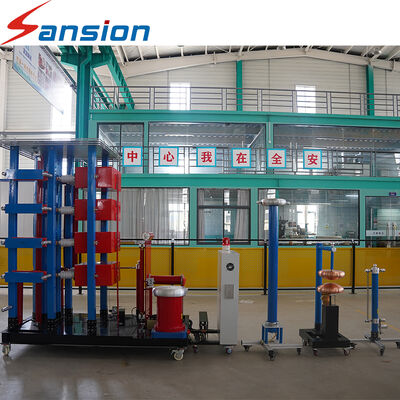

High Voltage Lightning and Switching Impulse Voltage Generator for Transformer, Circuit Breaker, GIS and Other High Voltage Electrical Equipment Testing

Product Description

The SXCY Series Impulse Voltage & Current Generator is designed for high-voltage laboratories and electrical equipment manufacturers that need to evaluate insulation systems under severe transient electrical conditions.

Engineering Advantages

• High Voltage Capability
  Configurations extend to ±4800 kV for demanding high-voltage applications.
• High-Energy Testing
  Impulse energy configurations reach up to 320 kJ.
• Scalable Stage Structure
  The generator can be configured from 1 to 24 stages.
• Application-Based Selection
  Generator parameters can be matched to the actual test object and required test conditions.
• Expandable System Design
  The generator can be integrated with charging, measurement, waveform control and data acquisition equipment.
• Suitable for Large Test Facilities
  The configuration range supports applications ranging from conventional HV testing to large-scale laboratory projects.

Configuration Options

FAQ

1. What is an impulse voltage generator?
   An impulse voltage generator is a high-voltage test device that produces short-duration impulse voltage for evaluating the dielectric withstand capability of electrical equipment.
2. What is the SXCY Series mainly used for?
   It is mainly used for impulse testing of transformers and other high-voltage electrical equipment, including GIS, switchgear, bushings, cables and insulators.
3. What is the maximum nominal voltage?
   The listed SXCY configurations extend up to ±4800 kV.
4. What is the maximum impulse energy?
   The available configuration range reaches 320 kJ.
5. How many stages are available?
   The generator can be configured with 1 to 24 stages.
6. Can it perform both impulse voltage and impulse current testing?
   The SXCY platform is identified as an Impulse Voltage Generator / Impulse Current Generator. The specific configuration and circuit arrangement should be selected according to the required impulse test type.
7. Can I order a customized configuration?
   Yes. The appropriate configuration can be determined based on the test voltage, test object, energy requirement, waveform and laboratory conditions.
8. Can you provide a complete impulse testing system?
   The generator can be integrated with charging, measurement, control, waveform-shaping and other auxiliary systems to develop a complete impulse testing solution.
