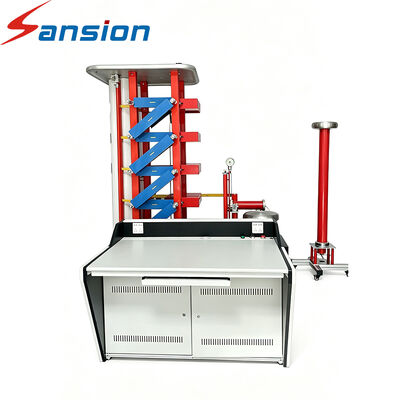

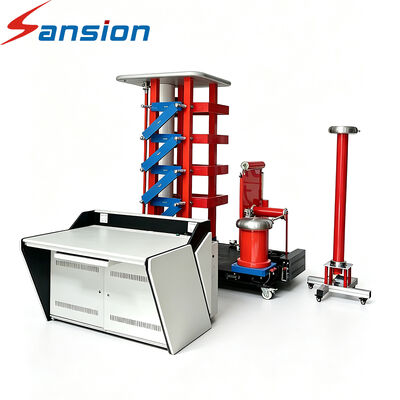

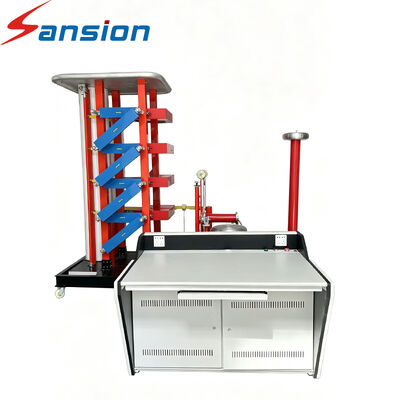

Large Image :  High Voltage Impulse Voltage Generator Lightning Impulse Test Set for Transformer, Arrester and Cable Testing

Product Details:
Place of Origin: China
Brand Name: Sansion
Certification: CE/SGS/EMS/ISO 9001
Model Number: SXCY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Plywood Case
Delivery Time: 30 Working Days
Payment Terms: T/T,L/C
Contact Now Chat Now

High Voltage Impulse Voltage Generator Lightning Impulse Test Set for Transformer, Arrester and Cable Testing

Description
Control Mode: Microcomputer Automatic Control Output Waveform: 8 Types Including Lightning Full Wave, Chopped Wave
Voltage Range: ±100kV ~ ±4800kV Customizable Nominal Voltage: ±100 ~ ±4800kV
Impulse Capacitance: 0.0278‑0.5μF Impulse Energy: 7.31‑320KJ
Highlight:

High Voltage Impulse Voltage Generator

,

Lightning Impulse Test Set

,

Impulse Voltage Generator for Transformer

Product Overview

The impulse voltage generator is essential test equipment for detecting and evaluating the insulation performance and protective performance of various high‑voltage electrical equipment under lightning over‑voltage and switching over‑voltage conditions. It is widely adopted in electrical manufacturing, power operation, scientific research institutes and other sectors.

This series impulse voltage generator is mainly used to carry out lightning full‑wave impulse voltage test, lightning chopped‑wave impulse voltage test and switching impulse voltage test for power equipment samples.

Main Features

  • Multiple Standard Impulse Waveforms It can generate standard lightning wave, switching wave, lightning chopped wave, oscillating lightning wave, oscillating switching wave, line insulator chopped wave, composite insulator chopped wave and transformer induced operating wave, total 8 types of impulse voltage waveforms. Technical indicators comply with GB and IEC standards. Performance reaches domestic leading and international advanced level.
  • Complete Assembled Unit Complete supporting configuration, wide range of voltage grades for selection.
  • Strong Load‑bearing Capacity Low loop inductance, equipped with damping & filtering measures. Standard impulse waveforms can be maintained even under large‑capacity test loads.
  • High Voltage Utilization Factor
  • Easy Operation & Reliable Performance Convenient waveform adjustment, excellent synchronization performance, stable & reliable action.
  • High‑degree Automation Adopts constant‑current charging automatic control technology, strong anti‑interference capability.
  • Digital Waveform Measurement & Data Processing Built‑in digital impulse waveform measurement system & on‑line microcomputer processing system for impulse test data, greatly improves test accuracy & working efficiency.

Technical Parameters

Nominal Voltage(kV) Impulse Capacitance(μF) Stage Capacitance(μF) Impulse Energy(KJ) Stage Voltage(kV) Number of Stages
±100 ~ ±400 0.1625‑0.0833 0.325‑0.5 7.31‑33.74 ±100 1‑4
±300 ~ ±900 0.1625‑0.0833 0.325‑0.5 7.31‑33.74 ±150 2‑6
±1050 ~ ±1500 0.0464‑0.05 0.325‑0.5 25.58‑56.25 ±150 7‑10
±1600 ~ ±2400 0.0625‑0.0833 0.5‑1 80‑240 ±200 8‑12
±2800 ~ ±3200 0.0357‑0.0625 0.5‑1 140‑320 ±200 14‑16
±3600 ~ ±4800 0.0278‑0.03125 0.5‑1 80‑240 ±200 18‑24

Application Scope

  • Power utility high‑voltage testing laboratories
  • Transformer, mutual inductor, high‑voltage insulator manufacturing factories
  • Third‑party electrical inspection & certification institutions
  • University & research institute high‑voltage research labs
  • High‑voltage switchgear, arrester, cable R&D and type test

FAQ

Q: What test waveforms can this impulse voltage generator produce?

A: It supports 8 kinds of impulse waveforms including lightning full wave, lightning chopped wave, switching impulse wave, oscillating wave etc, meets IEC & national standard requirements.

Q: Can you customize the voltage level and stages?

A: Yes, we support customized configuration according to customer’s on‑site test requirements.
