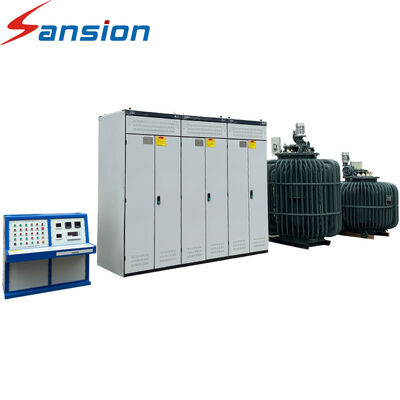

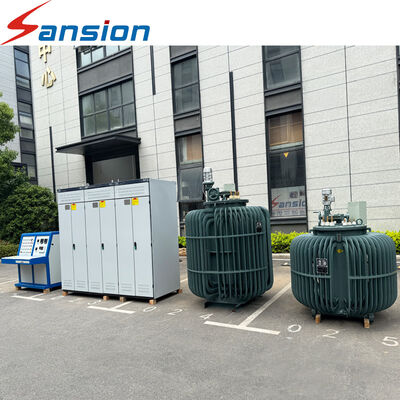

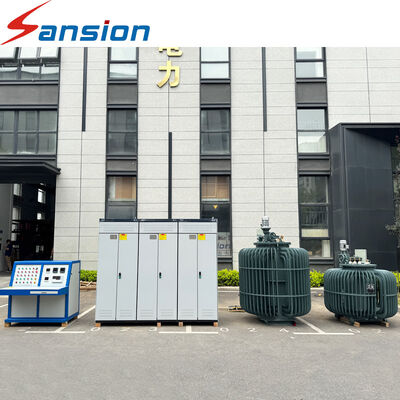

Motor Performance Test Bench Electric Motor Testing Equipment for Torque Speed Efficiency Power Temperature Rise No-Load and Load Performance Testing

Product Description

The Motor Performance Test Bench is a professional electric motor testing system used to evaluate the operating performance and efficiency of motors under different working conditions.

The system combines a motor dynamometer, torque-speed measurement system, electrical power analyzer, temperature sensors, control system and data acquisition software.

By applying controlled load conditions, the test bench can obtain the motor's torque-speed characteristics, power-speed characteristics and efficiency performance.

The system is suitable for laboratory testing, production inspection and motor R&D applications.

Key Test Functions

• No-load performance test
• Rated-load test
• Torque-speed characteristic test
• Power-speed characteristic test
• Efficiency test
• Input/output power measurement
• Current and voltage measurement
• Power factor measurement
• Temperature measurement
• Temperature-rise test
• Starting performance test
• Overload performance test
• Locked-rotor test
• Motor endurance testing
• Automatic test curve generation

Why Customers Need a Motor Performance Test Bench

Many motor manufacturers need to verify whether the finished motor actually meets its rated specifications.

The most important parameters normally include:

Voltage → Current → Input Power → Torque → Speed → Output Power → Efficiency → Temperature

The test bench synchronizes these parameters and provides test curves and data for engineering analysis and quality inspection.

Typical Applications

• Motor factory production testing
• Motor performance verification
• R&D laboratories
• Industrial motor testing
• Pump motor testing
• Fan motor testing
• Compressor motor testing
• Servo motor testing
• Generator/motor laboratory testing
• Quality control

FAQ

Q: What is the difference between a motor test bench and a motor performance test system?
A: A motor test bench generally refers to the complete physical testing platform, while a motor performance test system can include the bench, loading equipment, sensors, power analyzer, control system and software.

Q: What information is required for quotation?
A: Motor rated power, rated voltage, current, rated speed, maximum speed, rated torque, motor type and required test items are the most important parameters.

Q: Can the system measure efficiency?
A: Yes. Efficiency can be calculated from measured electrical input and mechanical output parameters.
