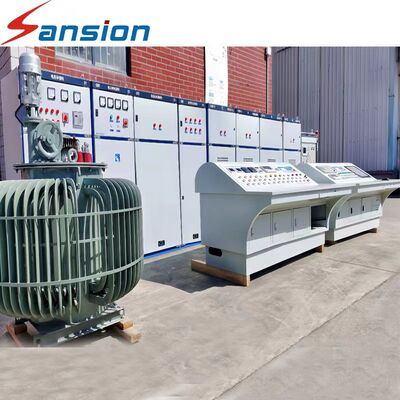

Auto Electric Motor Test System 0–10kV For No Load / Load Characteristic Testing

This is suitable for production line inspection, routine quality evaluation, and repair acceptance testing of various motor types, including AC, DC, and inverter-driven motors. Supporting wide test ranges up to 10,000 kW and 10 kV, the system helps users improve testing efficiency and maintain consistent product quality.

1.Real-Time Three-Phase Electrical Analysis
Provides synchronized monitoring of three-phase current signals with precise data acquisition technology, enabling accurate evaluation of motor operating conditions.

2.Efficient Automatic Test Control
Automates the complete testing sequence to improve consistency, shorten test cycles, and reduce operator workload in factories and repair facilities.

3.Advanced Integrated Control Architecture
Equipped with industrial PC-based control technology, combining test power supply, measurement sensors, signal processing, and intelligent software for reliable operation.

4.Comprehensive Test Data Management
Supports automatic calculation, waveform visualization, data storage, and report generation, ensuring convenient review and complete test documentation.

5.Broad Motor Compatibility
Applicable for various AC motors, DC motors, and variable frequency motors with testing capability ranging from standard motors to high-power industrial equipment.

1. What types of motors are suitable for testing with this system?

The Motor Comprehensive Test System is designed for factory inspection and service evaluation of AC motors, DC motors, and variable frequency motors after manufacturing or repair.

2. What is the maximum motor capacity and voltage level supported?

The system can handle motor capacities ranging from 0 to 10,000 kW and voltage classes from 0 to 10 kV.

3. How does the system guarantee measurement accuracy?

Through advanced multi-function acquisition technology, it performs simultaneous three-phase current monitoring and captures electrical changes during motor operation with high accuracy.

4. How does automation improve the testing process?

Automated control procedures simplify operation steps, reduce dependence on manual work, and ensure stable and consistent test results.

5. Does the system provide test documentation functions?

Yes. It can automatically generate test reports while storing measurement data and waveforms, with options for viewing and printing records.
