Product Description

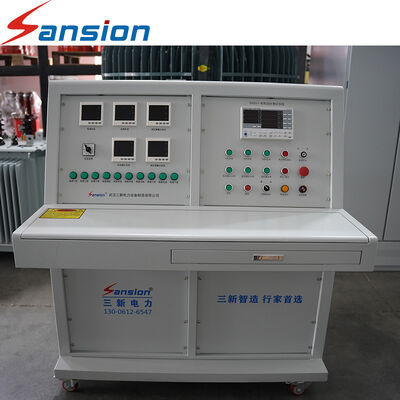

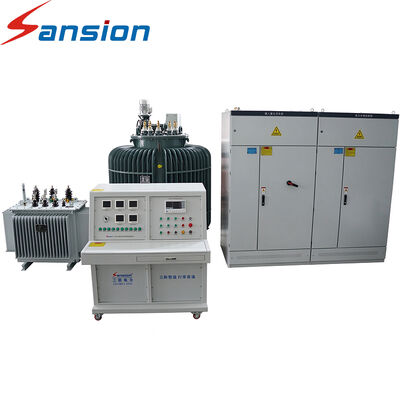

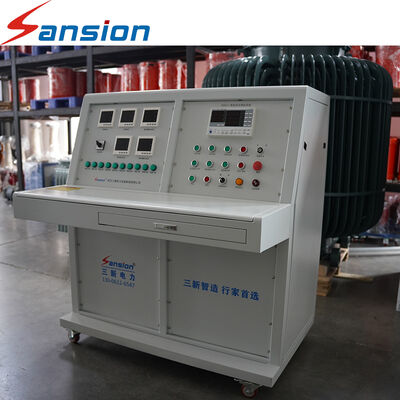

The Motor Comprehensive Test System is a computer-controlled testing platform developed for systematic evaluation of motor electrical characteristics, operating performance, and test safety.
Instead of using separate instruments for different test procedures, the system brings power supply, measurement, data acquisition, load testing, control, analysis, and reporting into one coordinated platform.
It can be configured for AC motors, DC motors, and variable-frequency motors, covering routine electrical tests as well as no-load, locked-rotor, load, temperature-rise, torque-speed, and vibration measurements.
Key System Specifications
| Item |
Description |
| Motor Type |
AC / DC / Variable-Frequency Motors |
| Applicable Motor Power |
Up to 10,000 kW* |
| Applicable Voltage |
Up to 10 kV* |
| Maximum Load Test Capacity |
Up to 400 kW* |
| Test Frequency |
Up to 60 Hz* |
| Electrical Tests |
IR / Withstand Voltage / Inter-Turn / Resistance |
| Performance Tests |
No-Load / Load / Locked-Rotor |
| Mechanical Tests |
Torque / Speed / Vibration |
| Thermal Test |
Temperature Rise |
| Data Acquisition |
Automatic |
| Control Mode |
Computer-Controlled |
| Data Processing |
Automatic |
| Report Generation |
Supported |
| System Configuration |
Customizable |
Typical Applications
- AC Motors
- DC Motors
- Three-Phase Motors
- Variable-Frequency Motors
- High-Voltage Motors
- Industrial Motors
- Low-Voltage Motors
- Customized Motors
FAQ
Q:What is a Motor Comprehensive Test System?
It is an integrated platform that combines motor power supply, measurement, load testing, data acquisition, control, analysis, and reporting for comprehensive motor evaluation.
Q:Can it test both electrical and mechanical characteristics?
Yes. Depending on the configuration, the system can cover electrical parameters such as voltage, current, resistance and insulation, as well as mechanical parameters including torque, speed and vibration.
Q:What is the maximum motor power?
The system can be configured for motors up to 10,000 kW, depending on the required test functions and system configuration.
Q:Can it perform a 400 kW load test?
Yes. A corresponding configuration can provide an actual load testing capability of up to 400 kW.
Q:Does it support automatic testing?
Yes. The industrial computer and software can control the test process, acquire data, process results, and manage test records.
