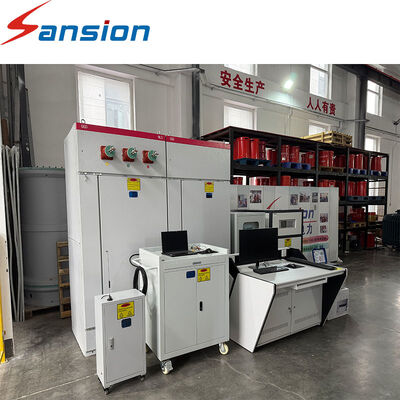

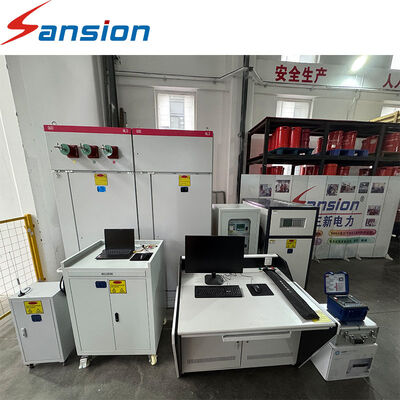

Intelligent Transformer Test System for Comprehensive Performance Testing of Power Transformers with Automated Measurement and Control

Product Introduction

The SXBZ Series Integrated Transformer Testing System is designed for transformer manufacturers, repair centers, power companies, and professional electrical testing laboratories that need to perform multiple transformer tests within one coordinated system.

Rather than relying on separate test instruments for every individual procedure, the SXBZ Series combines the test power source, voltage regulation, measurement, control, protection, and data acquisition into an integrated testing platform.

Comprehensive Transformer Testing

• Voltage & Current Measurement
  Measurement and acquisition of transformer test voltage and current.
• Power Parameter Analysis
  Measurement of relevant electrical power parameters through the integrated analysis system.
• DC Resistance Testing
  Measurement of transformer winding resistance using the configured DC resistance testing module.
• Transformer Turns Ratio Testing
  Testing of transformer turns ratio through the corresponding measurement unit.
• Electrical Parameter Measurement
  Collection and analysis of key electrical parameters during transformer testing.
• Customized Testing Functions
  Additional testing functions can be integrated according to the customer's testing standards and requirements.

System Configuration

Technical Overview

FAQ

1. What is the difference between the SXBZ system and a standalone transformer tester?
   A standalone tester is generally designed for a specific testing function.The SXBZ Series is an integrated testing platform that can combine multiple testing units, power equipment, measurement devices, control systems, and protection functions into one coordinated system.
2. What transformer tests can the SXBZ system perform?
   The available functions depend on the system configuration.Typical functions can include voltage and current measurement, power parameter analysis, DC resistance testing, transformer turns ratio testing, electrical parameter acquisition, and other customized testing functions.
3. Can I select only the testing functions I need?
   Yes.The SXBZ system is designed with a modular configuration. The system can be developed according to the customer's transformer type, capacity, voltage level, required test items, and testing process.
4. Is the SXBZ system suitable for transformer factories?
   Yes.It is designed for applications where transformers need to undergo repeated testing during manufacturing and final inspection.
   The centralized architecture is particularly suitable for dedicated factory testing stations.
5. Can the system be used for transformer maintenance?
   Yes.The system can also be configured for transformer repair centers and maintenance facilities.The required testing functions should be selected according to the specific maintenance and inspection requirements.
