Advanced Lightning Impulse Generator for High Voltage Transformer, Cable, Insulator and Bushing Testing

General Information

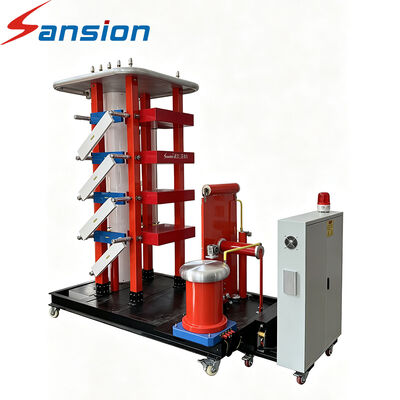

The SXCY Series Impulse Voltage & Impulse Current Generator provides a controlled source of high-energy transient pulses for evaluating insulation strength and electrical performance under severe impulse conditions.

With rated voltage configurations from ±100 kV to ±4800 kV and impulse energy up to 320 kJ, the system can be configured for a wide range of high-voltage and extra-high-voltage testing applications.

Key Benefits

• High-Energy Impulse Testing
  With configurations providing up to 320 kJ impulse energy, the system can handle demanding tests involving large electrical equipment and insulation systems.
• Up to ±4800 kV
  A broad voltage range makes the series applicable to different testing levels, from conventional high-voltage equipment to EHV/UHV laboratory applications.
• Multi-Stage Construction
  The generator can be assembled with different numbers of stages according to the required output voltage and energy, with configurations ranging from 1 to 24 stages.
• Parameter Matching
  Impulse capacitance, stage capacitance and other electrical parameters can be selected according to the characteristics of the test object.
• Built for Professional Testing
  The system can be incorporated into factory test facilities, high-voltage laboratories, research centers and specialized electrical testing stations.

Technical Specifications

FAQ

1. What is the SXCY Series used for?
   It is used to generate high-energy impulse voltage or impulse current for evaluating the insulation and electrical performance of high-voltage equipment.
2. What voltage range is available?
   The series covers configurations from ±100 kV to ±4800 kV.
3. What is the maximum impulse energy?
   Depending on the configuration, the impulse energy can reach 320 kJ.
4. How many stages can be used?
   Different configurations use 1 to 24 stages.
5. Can it test power transformers?
   Yes. The system can be configured for impulse testing of power transformers and other large high-voltage electrical equipment.
