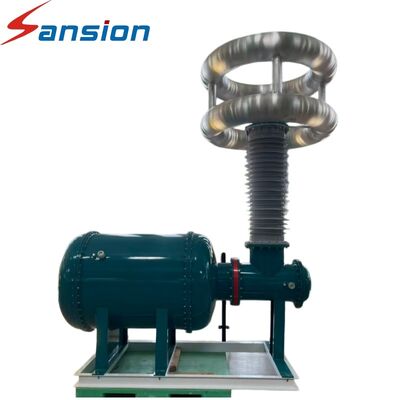

High Precision GIS Partial Discharge Test Equipment For Voltage Insulation Testing

GIS Partial Discharge Withstand Test System is a professional high-voltage testing solution designed for insulation performance evaluation and partial discharge detection of gas insulated switchgear (GIS). The system integrates withstand voltage testing and partial discharge measurement technologies to provide a reliable method for detecting insulation defects and ensuring the safe operation of high voltage equipment.

The equipment can simulate actual operating conditions by applying high voltage stress to GIS equipment while monitoring partial discharge signals generated from internal defects, including tip discharge, particle discharge, floating potential discharge, and insulation defects. Through accurate signal acquisition and analysis, engineers can evaluate the insulation condition and improve the reliability of GIS products.

With compact structure, advanced shielding technology, and high sensitivity detection capability, the GIS Partial Discharge Withstand Test System is widely used in GIS manufacturers, power utilities, testing laboratories, and research institutions for factory testing, quality inspection, and technical research.

The GIS Partial Discharge Withstand Test System is mainly applied for insulation testing and defect diagnosis of high voltage GIS equipment. It is suitable for GIS production lines, electrical testing centers, power engineering laboratories, and utility maintenance departments.

The system helps verify the insulation quality of GIS during manufacturing and commissioning processes. It can effectively identify potential insulation problems before equipment is installed into the power network, reducing operation risks and improving long-term system reliability.

Typical applications include:

• GIS factory acceptance testing (FAT)
• High voltage insulation withstand testing
• Partial discharge measurement and analysis
• GIS quality control and research testing

• High Sensitivity Partial Discharge Detection
  Advanced measurement technology enables accurate detection of weak discharge signals and helps identify hidden insulation defects.
• Integrated Testing Solution
  Combines withstand voltage testing and partial discharge measurement in one system, improving testing efficiency and reducing equipment requirements.
• Reliable Anti-Interference Design
  Optimized shielding and filtering technology ensures stable measurement results in high-voltage environments.
• Flexible Configuration
  The system can be customized according to different GIS structures, voltage levels, and laboratory testing requirements.
