Automatic GIS AC Hipot And Partial Discharge Test System For Gas Insulated Switchgear Factory And On Site Testing
Reliable Solution for UHV GIS & GIL High Voltage Testing
Product Overview

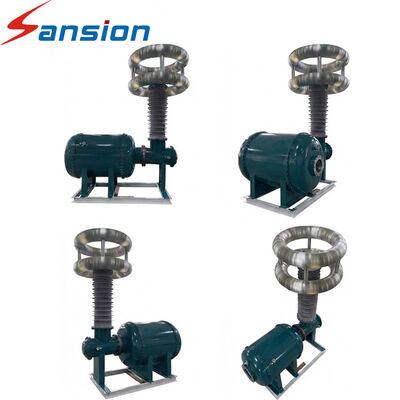

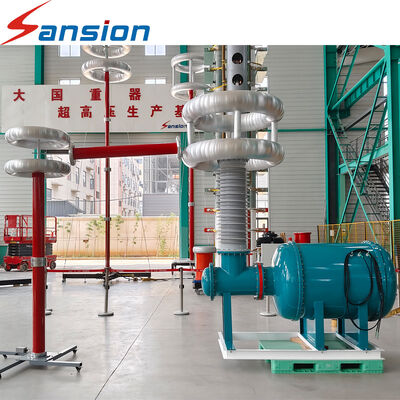

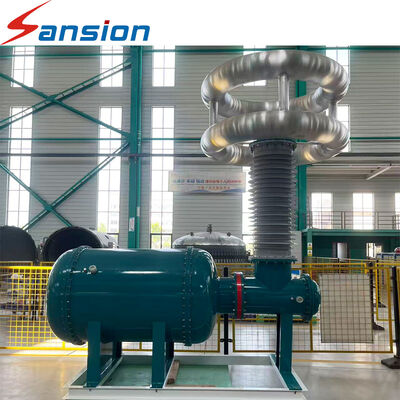

The SXGTU Series Automatic GIS AC Hipot and Partial Discharge Test System is designed for high voltage insulation testing and partial discharge measurement of GIS and GIL power equipment.
As modern power grids move toward higher voltage levels and larger transmission capacity, traditional testing methods face increasing challenges. SXGTU provides a compact, efficient, and reliable solution for manufacturers and utilities requiring high-performance no partial discharge high voltage testing systems.
Product Advantages
✔ Ultra-Low Partial Discharge Performance
The complete system is optimized to achieve partial discharge levels as low as 1–3 pC, ensuring accurate insulation evaluation.
✔ Compact & Space-Saving Design
Compared with conventional high voltage test systems, SXGTU features:
- Smaller footprint
- Lightweight components
- Easier transportation
- Faster installation
✔ Safe High Voltage Design
The high voltage section is completely shielded and isolated, improving operational safety during testing.
✔ Multi-Function Testing Platform
Built-in isolation switching technology allows one system to support multiple testing applications.
✔ Flexible Configuration
Available voltage levels:
100kV–1000kV
Capacity range:
50kVA–2000kVA
FAQ
Q1: Why is partial discharge testing important for GIS?
A:
Partial discharge testing helps detect insulation defects, manufacturing problems, and potential failures, improving GIS reliability and service life.
Q2: Is SXGTU suitable for GIS manufacturers?
A:
Yes. It is designed for factory acceptance testing, quality inspection, and preventive testing of GIS/GIL equipment.
Q3: Does the system require a large testing hall?
A:
No. The compact structure reduces installation space requirements compared with traditional high voltage systems.
Q4: Can the equipment be integrated into existing test systems?
A:
Yes. Customized interfaces and configurations are available according to customer requirements.
