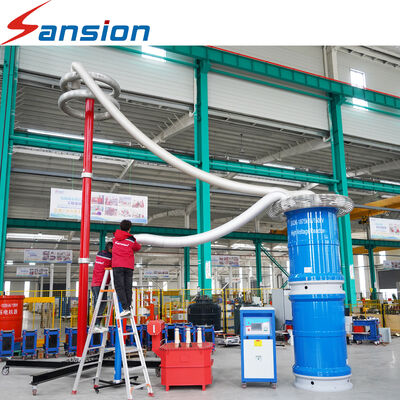

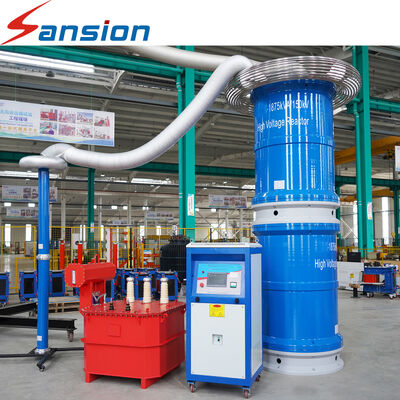

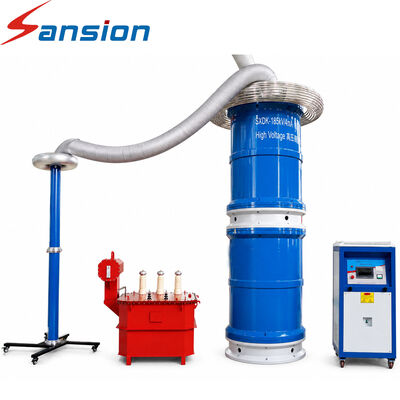

High Voltage Switchgear Resonant Test Equipment for AC Insulation Testing

High Voltage Switchgear Resonant Test Equipment

This equipment provides a resonant AC voltage source for compatible insulation withstand tests on switchgear and related high-voltage apparatus. The configuration should be selected according to the equipment's capacitance, required voltage and applicable testing requirements.

Testing Functions

• AC withstand voltage testing

• Test voltage adjustment and monitoring

• Resonance tuning where supported

• Configurable electrical protection

Applications

Switchgear factories, substations, electrical maintenance contractors and high-voltage laboratories.

Buyer Concerns

Switchgear testing requirements vary by equipment type, rated voltage and test procedure. A successful selection requires confirming the precise test objective rather than relying solely on a general product description.

FAQ

Q1: Is this system suitable for every circuit breaker test?

No. It is intended for compatible AC withstand tests, not every mechanical, timing or contact-resistance test.

Q2: Can it support factory acceptance testing?

It can support specified tests when its ratings and configuration match the factory's test requirements.

Q3: What should be checked before purchasing?

Required voltage, capacitance, test duration, installation arrangement, accessories and applicable standard.

Contact us to evaluate your switchgear testing requirements.
