20–300 Hz 108kV Modular Structure Series Resonant Test System for AC Resonant Test System Stator Insulation Testing

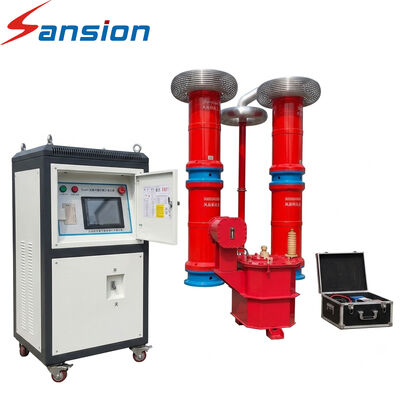

Large Image : 20–300 Hz 108kV Modular Structure Series Resonant Test System for AC Resonant Test System Stator Insulation Testing

Product Details:

Place of Origin:	China
Brand Name:	Sansion Power
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXBP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	L/C,T/T

Contact Now Chat Now

20–300 Hz 108kV Modular Structure Series Resonant Test System for AC Resonant Test System Stator Insulation Testing

Description

Voltage Level:	108kV	Frequency Range:	20–300 Hz
Protection Functions:	Over-voltage, Over-current, Flashover	Design:	Modular Structure
Test Type:	AC Withstand Voltage	Waveform Distortion:	Low
Highlight:	20–300 Hz Series Resonant Test System , 108kV AC Resonant Test System , Modular Structure Series Resonant Test System

Generator Series Resonant Test System

This series resonant test solution can be configured for specified AC withstand tests on compatible generator windings and related electrical equipment. The required arrangement depends on the generator's electrical parameters and the applicable test procedure.

Testing Functions

AC insulation withstand testing for compatible test objects
Adjustable resonance conditions
Voltage and current monitoring
Protection functions according to system configuration

Applications

Hydropower stations, generator manufacturers, power plant maintenance departments, overhaul contractors and electrical test laboratories.

Customer Priorities

Generator owners and maintenance contractors need a clear confirmation of test suitability, connection requirements, test duration, portability and documentation.

FAQ

Q1: Can it test all generator types?

Not automatically. Generator ratings, winding capacitance, connection configuration and test procedure must be reviewed.

Q2: Can it be used during maintenance?

It may be used for specified maintenance tests where the equipment and test method are appropriate.

Q3: Can the test data be saved?

Data storage depends on the supplied control system and software configuration.

Provide the generator nameplate information and test requirements for assessment.
