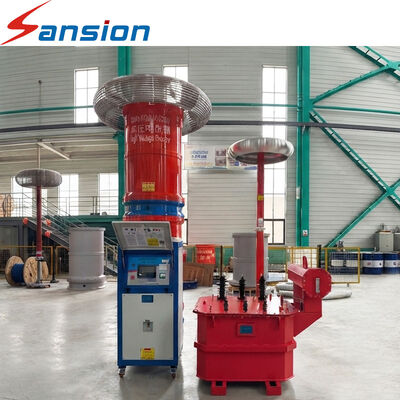

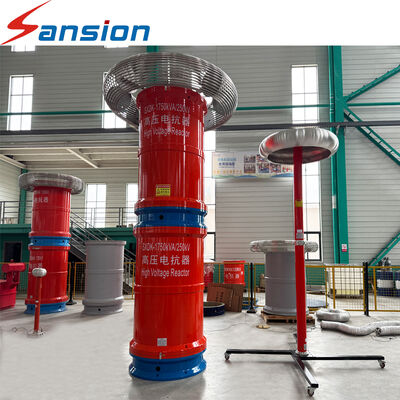

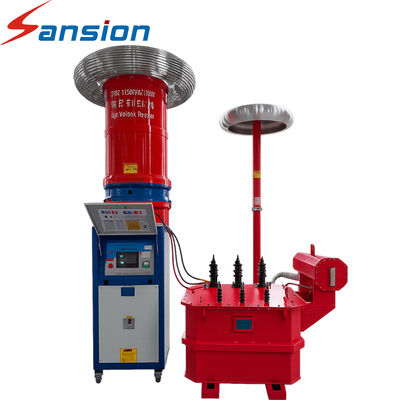

108kV GIS AC Withstand Voltage Test System with 20–300 Hz Variable Frequency and Modular Structure

The GIS AC Withstand Voltage Test System is designed for applicable dielectric tests on gas-insulated switchgear assemblies and associated high-voltage equipment. A properly selected resonant configuration can support testing at manufacturing facilities and substation sites.

• AC withstand testing of compatible GIS assemblies

• Test voltage monitoring and control

• Resonant circuit adjustment

• Configurable overvoltage, overcurrent and flashover protection

• Test event documentation, if included

GIS manufacturers, high-voltage substations, EPC contractors, commissioning teams and power utilities.

GIS testing often requires careful coordination of test voltage, capacitance, site layout, connection arrangements and safety procedures. Buyers need to verify compatibility with the specific GIS configuration and applicable standards.

Potentially, depending on the specified system rating and test configuration.

Yes, where the selected system meets the electrical and environmental requirements of the site.

GIS rated voltage, test voltage, equipment configuration, capacitance data if available, test procedure and site conditions.
