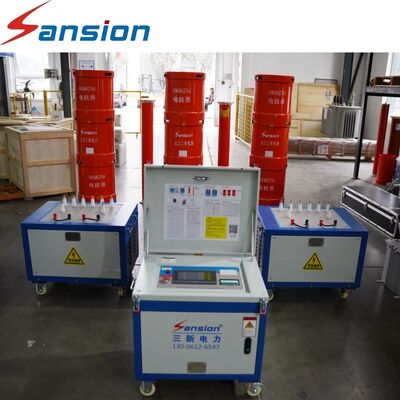

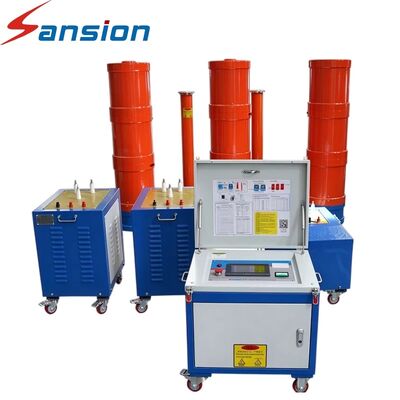

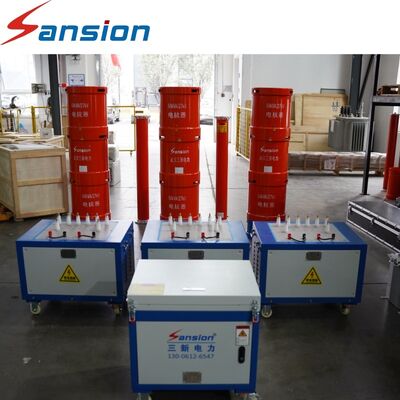

680kVA 270kV Variable Frequency AC Resonant Test System
The 680kVA 270kV Variable Frequency AC Resonant Test System is intended to support specified AC withstand voltage testing applications for compatible capacitive electrical equipment. The rated capacity and rated voltage are important initial references when evaluating the system for a transformer testing project. The final selection must take into account the transformer's electrical characteristics, required test voltage, capacitance, test duration, operating conditions, site environment, and applicable technical specification.
Large power transformers and high-voltage bushings are relevant application objects to consider, including testing projects associated with 110kV and 220kV main transformers. Each transformer project has its own requirements, and the system must be checked against the specified test conditions before its suitability is confirmed. Sansion Power can review the information supplied by the customer and discuss the appropriate equipment scope, including the proposed resonant reactor arrangement, power supply, excitation transformer, voltage measurement, control functions, and agreed accessories. The final configuration should be stated in the project-specific technical documentation.
Product Applications
Specified AC withstand voltage testing for compatible power transformer applications.
High-voltage testing projects involving 110kV and 220kV main transformers, subject to technical confirmation.
AC withstand testing requirements for compatible high-voltage bushings.
Transformer commissioning and acceptance testing where the selected system meets the required conditions.
High-voltage insulation testing projects defined by the customer's technical specification.
Product Advantages
1. Defined Electrical Ratings
The stated 680kVA capacity and 270kV voltage rating provide an initial basis for project review.
2. Transformer Application Assessment
Transformer and bushing specifications can be reviewed against the required voltage and test conditions.
3. Requirements-Based System Selection
The proposed system scope can be assessed using the test-object characteristics, capacitance, duration, and site requirements.
4. Documented Technical Scope
The quotation can identify the agreed components, measurement and control functions, accessories, and related services.
FAQ
Q1: What are the stated ratings of the system?
A1: The rated capacity is 680kVA, and the rated voltage is 270kV.
Q2: Can it be evaluated for 110kV or 220kV transformer projects?
A2: These are relevant project scenarios for technical evaluation. Actual suitability depends on the required test conditions and equipment parameters.
Q3: Can high-voltage bushings also be considered?
A3: Yes, compatible high-voltage bushing tests can be evaluated against the specified requirements.
Q4: What information should a transformer manufacturer provide?
A4: Provide the equipment rating, required test voltage, relevant capacitance data if available, test duration, applicable specification, and site conditions.
