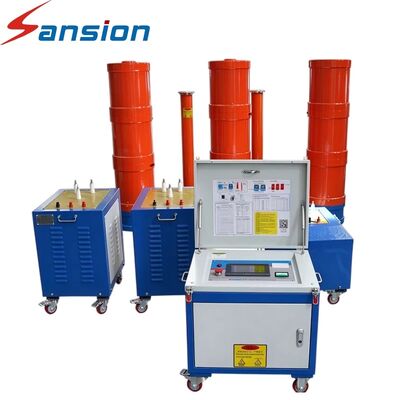

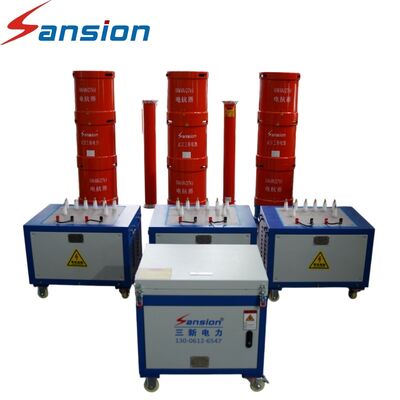

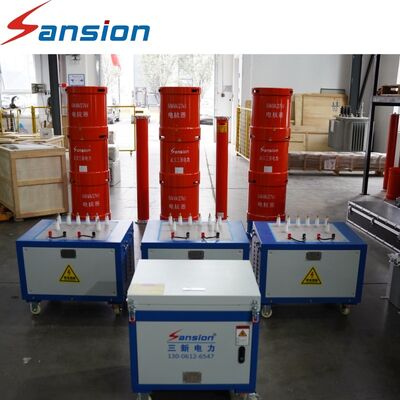

680kVA 270kV Variable Frequency AC Resonant Test System
This 680kVA 270kV Variable Frequency AC Resonant Test System is intended for specified high-voltage AC withstand voltage testing of compatible capacitive electrical equipment. The stated ratings provide a starting point for technical assessment, while final equipment selection depends on the test-object capacitance, required test voltage, operating frequency, test duration, installation environment, and applicable test specification.
Gas-insulated switchgear (GIS) are relevant application categories for consideration in high-voltage testing projects, including projects associated with 110kV and 220kV systems. The requirements for a GIS installation can differ according to equipment design and project specifications, so the system configuration should be confirmed before ordering. Sansion Power can review the proposed test object and discuss the required reactor arrangement, variable-frequency power supply, excitation transformer, voltage measurement, control functions, and agreed accessories. Partial discharge diagnosis, where required, should be identified separately and verified as part of the confirmed measurement scope.
Product Applications
- Specified AC withstand voltage testing for compatible GIS equipment.
- High-voltage test projects involving GIS installations associated with 110kV and 220kV systems.
- equipment testing applications, subject to confirmation of the required test conditions.
- High-voltage insulation testing projects for compatible switchgear.
- Commissioning and acceptance test projects where the selected configuration meets the applicable requirements.
Product Advantages
1. High-Voltage Equipment Focus
The system is intended for defined AC withstand voltage testing applications involving compatible high-voltage equipment.
2. Clear Rated Specifications
The 270kV rated voltage and 680kVA capacity support preliminary technical comparison.
3. Application-Based Configuration
The proposed configuration can be reviewed according to GIS specifications, capacitance, test voltage, and site requirements.
4. Defined Measurement Scope
Voltage measurement, control functions, and any additional diagnostic requirements can be clarified in the technical proposal.
FAQ
Q1: What are the rated capacity and voltage?
A1: The stated rated capacity is 680kVA, and the rated voltage is 270kV.
Q2: Can GIS and projects be considered?
A2: Yes. They are relevant application categories, subject to technical verification for the specific equipment and test requirements.
Q3: Is partial discharge diagnosis included as standard?
A3: The supplied general information does not establish this as a standard function. Confirm the required PD measurement arrangement separately.
Q4: What information is needed for a GIS quotation?
A4: Provide the equipment type, rated voltage, required test voltage, capacitance if available, test duration, applicable specification, site conditions, and requested scope of supply.
