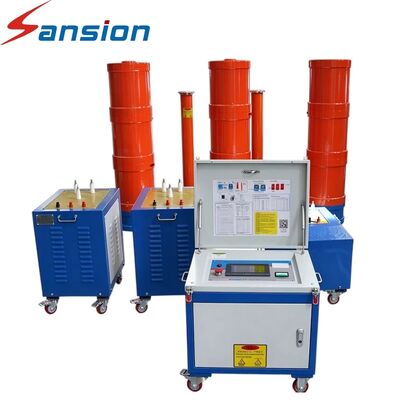

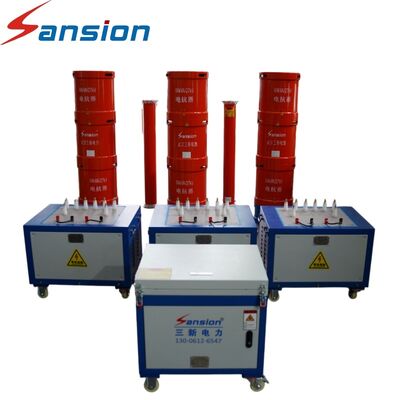

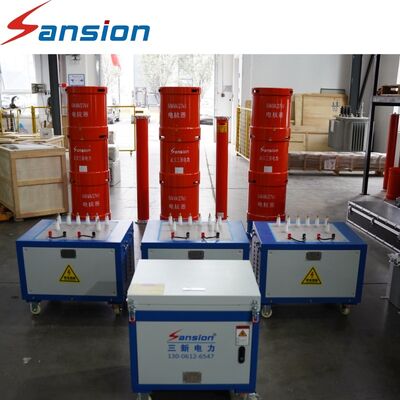

680kVA 270kV Variable Frequency AC Resonant Test System
The 680kVA 270kV Variable Frequency AC Resonant Test System is designed for specified AC withstand voltage testing applications involving compatible capacitive electrical equipment. With a rated capacity of 680kVA and a rated voltage of 270kV, it provides a defined equipment rating for engineering teams evaluating high-voltage test requirements. Final selection should consider the cable parameters, required test voltage, cable length, capacitance, operating frequency, test duration, site conditions, and applicable technical specification.
High-voltage power cables are an important application area to evaluate for this system, including cable projects associated with 110kV and 220kV transmission networks. Resonant test equipment selection must be based on the actual cable section and test requirements rather than voltage class alone. Sansion Power can review the project information and discuss a suitable system configuration, with the proposed components, measurement functions, control scope, and accessories documented in the technical proposal.
Product Applications
- AC withstand voltage testing projects for compatible power cables.
- Testing requirements associated with 110kV and 220kV cable lines, subject to technical confirmation.
- Cable commissioning and acceptance test projects where the selected system meets the specified conditions.
- High-voltage insulation testing applications involving compatible capacitive equipment.
Product Advantages
1. Defined System Ratings
The 680kVA rated capacity and 270kV rated voltage provide key reference specifications for preliminary project assessment.
2. Cable-Oriented Technical Evaluation
Cable length, capacitance, required voltage, and test duration can be reviewed when evaluating system suitability.
3. Project-Specific Configuration
The proposed system scope can be discussed according to the actual cable installation and applicable test specification.
4. Technical Proposal Support
Sansion Power can review customer-provided information and document the agreed configuration, accessories, and supply scope.
FAQ
Q1: What are the stated system ratings?
A1: The system is rated at 680kVA and 270kV.
Q2: Can it be evaluated for 110kV and 220kV XLPE cable projects?
A2: Yes, these are relevant application scenarios for evaluation. Suitability must be confirmed against the cable parameters and required test conditions.
Q3: What cable information is needed for selection?
A3: Provide the cable voltage class, length, capacitance if available, required test voltage, test duration, and applicable specification.
Q4: Does the system automatically include cable partial discharge diagnosis?
A4: Partial discharge diagnosis should not be assumed to be included. Any required PD measurement function must be confirmed in the technical proposal.
