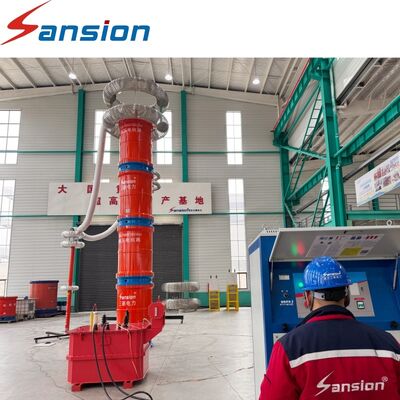

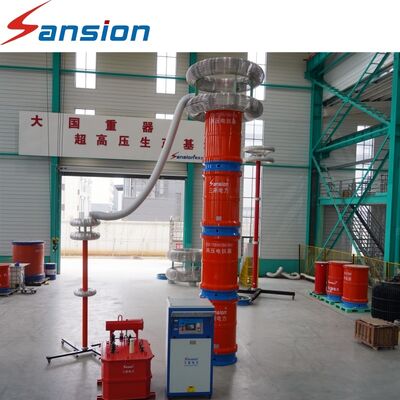

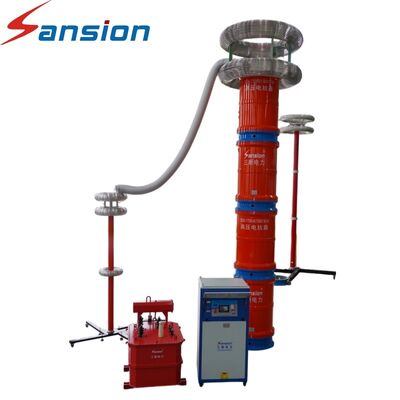

7020 kVA 540 kV High Voltage Variable Frequency Series Resonance Test System and Equipment for Cable Transformer Factory, GIS Substation Commissioning On-site Testing

Large Image : 7020 kVA 540 kV High Voltage Variable Frequency Series Resonance Test System and Equipment for Cable Transformer Factory, GIS Substation Commissioning On-site Testing

Product Details:

Place of Origin:	China
Brand Name:	Sansion Power
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXBP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	L/C,T/T

Contact Now Chat Now

7020 kVA 540 kV High Voltage Variable Frequency Series Resonance Test System and Equipment for Cable Transformer Factory, GIS Substation Commissioning On-site Testing

Description

Rated Capacity:	7020 KVA	Rated Voltage:	540 KV
Output Type:	AC Variable Frequency	Frequency Mode:	Variable Frequency
Resonance Type:	Series Resonance	Test Voltage:	High Voltage
Control System:	Parameter-adjustable Control	Deployment:	On-site / Field
Highlight:	7020 kVA series resonance test system , 540 kV high voltage test equipment , cable transformer GIS on-site testing

Product Description

SXBP High Voltage Variable Frequency Series Resonance Test System

The High Voltage Test System is a professional testing device developed for power engineering projects and electrical installation inspection. It provides a controlled AC voltage source for checking insulation conditions of newly installed or existing electrical equipment.

This system is widely applied in substations, power plants, and engineering service projects where reliable commissioning tests are required. Through resonance boosting technology, the equipment allows engineers to perform high voltage tests on cables, switchgear, transformers, and other power components. It helps identify potential insulation weaknesses, verify installation quality, and improve the operational stability of electrical networks.

Product Applications

Substation Commissioning

The system helps engineers verify electrical equipment performance before connection to the power grid.

Preventive Maintenance Testing

Utilities can use the system to evaluate equipment conditions and reduce unexpected failures.

Product Advantages

1. Suitable for Field Projects

The equipment is designed for flexible deployment in different engineering environments.

2. Convenient Testing Process

The control system simplifies parameter adjustment and operation management.

3. Reliable Voltage Output

It provides stable AC testing conditions for accurate equipment evaluation.

4. Multiple Application Scenarios

The system can serve different power equipment testing requirements.

FAQ

Q1: Is this system suitable for onsite testing?

A: Yes, it can be applied in substations and project locations.

Q2: What problems can it solve?

A: It helps detect insulation problems and verify equipment reliability.

Q3: What equipment can be tested?

A: Transformers, cables, switchgear, and other high voltage devices.

Q4: Is technical support available?

A: Yes, professional technical guidance can be provided.
