Electric Motor Test System for 0-10000kW AC DC Motors with 0-10kV Turn to Turn Withstand Voltage and Load Testing

SXDJ Motor Comprehensive Test System

Product Description

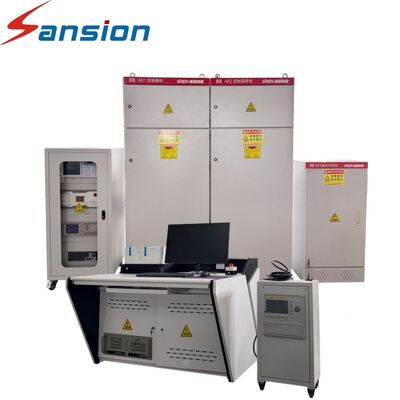

The SXDJ Motor Comprehensive Test System is an integrated testing platform developed for comprehensive testing of AC motors, DC motors and variable-frequency motors. It is applicable to motors with capacities from 0 to 10,000 kW and voltage levels from 0 to 10 kV. The system can be used for factory testing as well as testing after motor repair, covering electrical, insulation, temperature, vibration and load-related test requirements.

System Configuration

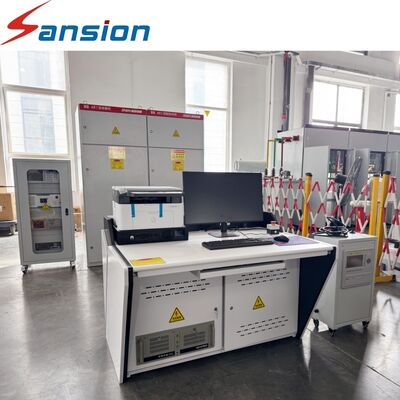

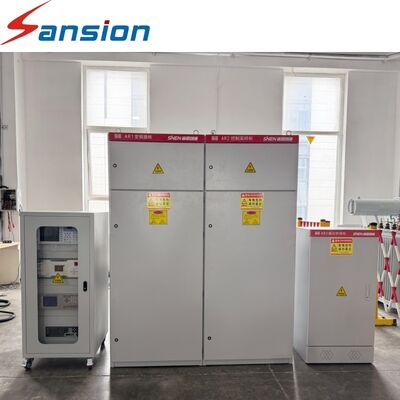

The complete system integrates an industrial computer, test power supply system and test control system. It also includes sensors and signal conditioning modules, data acquisition hardware and software, numerical calculation and processing software, graphical display and operation software, and software for test report generation. Waveform and measurement result storage and printing functions are also integrated into the system.

Main Test Functions

The system supports inter-turn withstand voltage testing for high- and low-voltage motors, power-frequency withstand voltage testing, cold resistance measurement and insulation resistance measurement. It can also measure no-load loss, no-load current, three-phase or single-phase voltage and average voltage. Temperature, vibration, temperature-rise and load tests can also be carried out according to the configured testing requirements.

System Features

Multiple testing functions are integrated into one testing platform, reducing the need to use separate instruments for different motor test items. The multi-channel measurement configuration supports simultaneous acquisition of different signals. Measurement data can be processed by the system software and presented through graphical interfaces. Test waveforms and measurement results can be stored and printed, while test reports can be generated for subsequent record management.

Applications

The system is suitable for motor manufacturing facilities, motor repair workshops and electrical testing laboratories. It can be used as a production test platform for newly manufactured motors and as a comprehensive test system for motors after maintenance or repair.

FAQ

Q1: What motor types can the system test?

A: It is designed for AC motors, DC motors and variable-frequency motors.

Q2: What is the motor capacity range?

A: The applicable capacity is 0–10,000 kW.

Q3: What voltage level is supported?

A: The applicable voltage level is 0–10 kV.
