Comprehensive Motor Test System for High Voltage AC DC Motor Factory Acceptance Load and No-Load Testing

Product Description

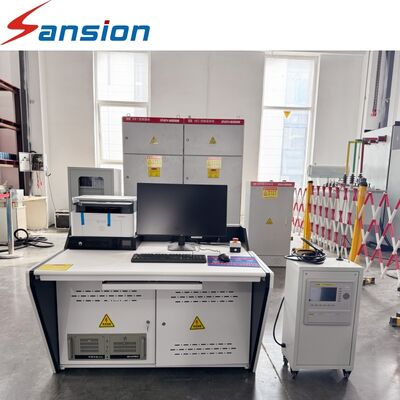

SXDJ Motor Comprehensive Test System

The SXDJ Motor Comprehensive Test System is designed for factory testing and post-repair testing of AC motors, DC motors and variable-frequency motors. It is suitable for motors with capacities from 0 to 10,000 kW and voltage levels from 0 to 10 kV. The system integrates test power supply, test control, measurement, data acquisition and software functions into a comprehensive motor testing platform.

Test Functions

The SXDJ system supports various electrical and performance tests for motors. The main test items include inter-turn withstand voltage test for high- and low-voltage motors, no-load loss and no-load current measurement, cold resistance measurement, three-phase or single-phase voltage measurement, average voltage measurement, vibration measurement, temperature measurement, power-frequency withstand voltage test, temperature-rise test, load test, and insulation resistance measurement.

Key Advantages

The system combines multiple testing and measurement functions in one integrated platform. Its multi-channel configuration supports different measurement requirements during motor testing. The system can acquire and process test data through dedicated hardware and software, while graphical operation software provides a clear interface for test operation and result display. Test waveforms and measurement results can be stored and printed, and test reports can be generated for test documentation and record management.

Applications

The SXDJ Motor Comprehensive Test System is suitable for motor manufacturing plants, motor repair facilities and electrical testing laboratories. It can be used for factory inspection of newly manufactured motors and testing after motor repair, covering electrical, insulation, temperature, vibration and load-related test requirements.

FAQ

Q1: What types of motors can be tested?

A: The system is applicable to AC motors, DC motors and variable-frequency motors.

Q2: What is the applicable motor capacity?

A: The applicable capacity range is 0–10,000 kW.

Q3: What is the applicable voltage range?

A: The applicable voltage level is 0–10 kV.

Q4: Can the system be used after motor repair?

A: Yes. It is designed for both factory testing and post-repair testing.

Q5: Can test results be stored and printed?

A: Yes. The system includes functions for waveform and measurement result storage, printing and test report generation.
