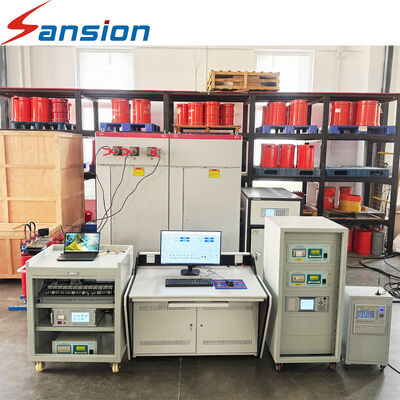

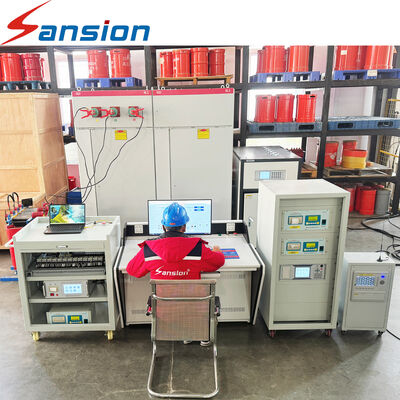

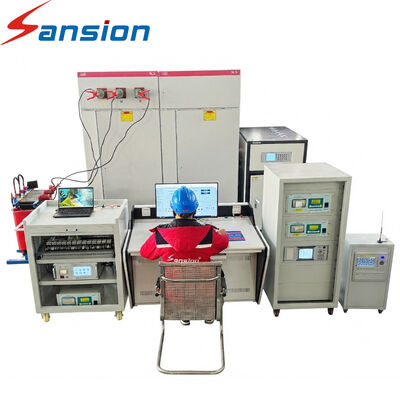

Computer-Controlled Transformer Test Bench with PLC Automation, Digital Measurement, Automatic Test Sequences and Report Generation, Advanced Transformer Testing Equipment for Factory Quality Control

The Computer-Controlled Transformer Test Bench is a comprehensive testing solution designed for transformer manufacturers seeking to improve testing efficiency, standardize operating procedures, and maintain traceable inspection records. The system integrates an industrial computer, digital measurement instruments, PLC-based control, test power supplies, and selected switching circuits into a unified testing platform.

Operators can enter transformer identification details, select required test items, monitor measurement results, and store or export test records according to the supplied software functions. The control architecture can be configured for different transformer ratings and production workflows, with selected operations automated to reduce repetitive manual work while maintaining appropriate operator supervision and electrical safety interlocks.

1. Transformer turns ratio and ratio deviation testing
2. Vector group verification
3. DC winding resistance measurement
4. No-load loss and current measurement
5. Load loss and short-circuit impedance testing
6. Selected AC withstand voltage tests
7. Induced voltage testing, when configured
8. PLC-based control and switching coordination
9. Configurable test sequences
10. Automatic data recording and report generation

• Automated transformer production lines
• Large transformer manufacturing facilities
• Quality control laboratories
• Factory acceptance testing
• Electrical testing departments
• Facilities requiring electronic inspection records

Contact us for a computer-controlled transformer test bench configured for your production workflow and automation requirements.
