300kV 15kJ Lightning Impulse Generator and Test System for Factory Inspection Electrical Insulation and Type Testing Processes

Large Image : 300kV 15kJ Lightning Impulse Generator and Test System for Factory Inspection Electrical Insulation and Type Testing Processes

Product Details:

Place of Origin:	China
Brand Name:	Sansion Power
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXCY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	T/T,L/C

Contact Now Chat Now

300kV 15kJ Lightning Impulse Generator and Test System for Factory Inspection Electrical Insulation and Type Testing Processes

Description

Impulse Voltage:	300kV	Impulse Energy:	15kJ
Testing Method:	Lightning Impulse Voltage Test	Test Objects:	Electrical Equipment Products
System Configuration:	Factory Testing Platform	Main Functions:	Impulse Generation And Test Verification
Product Type:	Lightning Impulse Generator And Test System	Applicable Standard:	IEC
Highlight:	300kV Lightning Impulse Generator , 15kJ Impulse Voltage Test System , Impulse Generator for Insulation Testing

Product Description

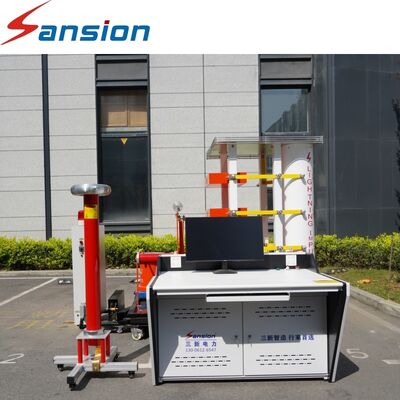

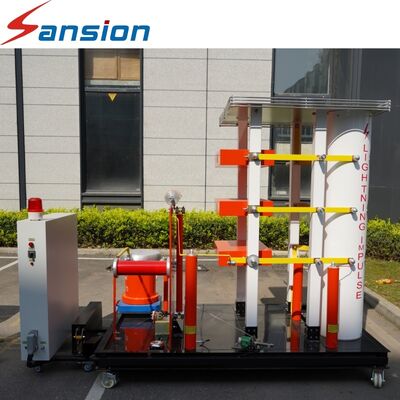

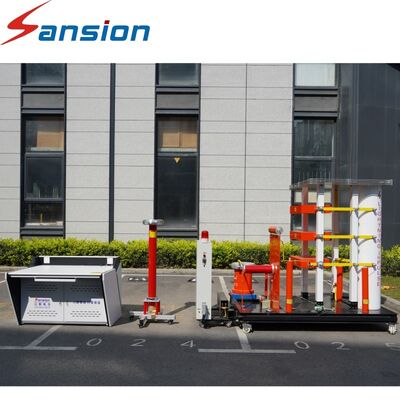

300kV 15kJ Lightning Impulse Generator and Test System

The 300kV 15kJ Lightning Impulse Generator and Test System provides a testing solution for manufacturers performing electrical safety verification and product quality assessment. It helps users evaluate product performance through lightning impulse testing during manufacturing processes.

For factories producing electrical equipment, reliable testing procedures are essential for maintaining product consistency and quality standards. This system supports professional impulse testing requirements for production inspection and technical verification.

Product Parameters

Product Type: Lightning Impulse Generator and Test System
Impulse Voltage: 300kV
Impulse Energy: 15kJ
Application: Factory Inspection and Quality Testing
Testing Method: Lightning Impulse Voltage Test
Test Objects: Electrical Equipment Products
System Configuration: Factory Testing Platform
Main Functions: Impulse Generation and Test Verification
Applicable Standard: IEC

Product Advantages

1. Factory Testing Application
Designed for production environments requiring impulse testing.

2. Quality Verification Support
Helps manufacturers improve inspection procedures.

3. Stable Testing Platform
Provides a professional solution for repeated testing applications.

4. Production-Oriented Design
Suitable for industrial electrical testing workflows.

Application Scenarios

Electrical equipment factories
Transformer production facilities
Quality control departments
Manufacturing inspection laboratories
Power equipment suppliers
Industrial testing centers

FAQ

Q1: What is this equipment used for in factories?

A: It is used for lightning impulse testing and product performance verification.

Q2: What are the main ratings?

A: The system provides 300kV impulse voltage and 15kJ impulse energy.

Q3: Why is impulse testing important for production?

A: It helps verify product reliability and insulation performance.

Q4: Can it be integrated into factory testing processes?

A: The system can be configured according to factory testing requirements.
