300kV 15kJ Lightning Impulse Generator and Test System for Substation Equipment Insulation Evaluation and Power Grid Testing Applications

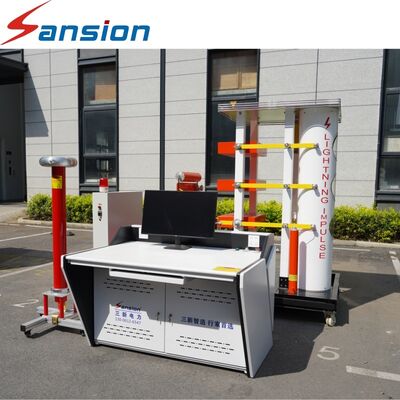

Large Image : 300kV 15kJ Lightning Impulse Generator and Test System for Substation Equipment Insulation Evaluation and Power Grid Testing Applications

Product Details:

Place of Origin:	China
Brand Name:	Sansion Power
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXCY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	L/C,T/T

Contact Now Chat Now

300kV 15kJ Lightning Impulse Generator and Test System for Substation Equipment Insulation Evaluation and Power Grid Testing Applications

Description

Impulse Voltage:	300kV	Impulse Energy:	15kJ
Test Method:	Lightning Impulse Testing	Test Objects:	High Voltage Power Equipment
System Type:	High Voltage Testing Platform	Main Functions:	Impulse Generation And Equipment Evaluation
Applicable Standard:	IEC 60060	Product Type:	Lightning Impulse Generator And Test System
Highlight:	300kV lightning impulse generator , 15kJ impulse voltage test system , substation insulation evaluation generator

Product Description

300kV 15kJ Lightning Impulse Generator and Test System

The 300kV 15kJ Lightning Impulse Generator and Test System is designed for testing applications related to power grid equipment and high-voltage components. It provides impulse voltage testing capability for evaluating equipment performance under lightning impulse conditions.

For utilities, engineering companies, and testing organizations, impulse testing helps verify whether electrical equipment meets operational reliability requirements. The system can be applied according to the characteristics of tested equipment and project specifications.

Product Parameters

Product Type: Lightning Impulse Generator and Test System

Impulse Voltage: 300kV

Impulse Energy: 15kJ

Application Area: Power Grid Equipment Testing

Test Method: Lightning Impulse Testing

Test Objects: High Voltage Power Equipment

System Type: High Voltage Testing Platform

Main Functions: Impulse Generation and Equipment Evaluation

Applicable Standard: IEC 60060

Product Advantages

1. Power System Application

Suitable for electrical equipment testing related to power infrastructure.

2. Reliability Verification

Supports evaluation of equipment performance before operation.

3. Engineering Project Adaptability

Can match different testing requirements.

4. Professional High Voltage Solution

Designed for specialized electrical testing applications.

Application Scenarios

Substation equipment testing
Power grid maintenance organizations
Electrical engineering companies
High-voltage equipment manufacturers
Power system research centers

FAQ

Q1: Can this system be used for substation equipment?

A: It can be applied for suitable equipment according to testing requirements.

Q2: What does lightning impulse testing evaluate?

A: It evaluates equipment ability to withstand impulse voltage stress.

Q3: Is it suitable for engineering projects?

A: Yes, it can support professional electrical testing projects.

Q4: How should customers define requirements?

A: Provide equipment type, voltage requirements, and testing purpose.
