300 kV 15 kJ Lightning Impulse Generator and Test System for Electrical Transformer Product Development Design IEC FAT Type Testing

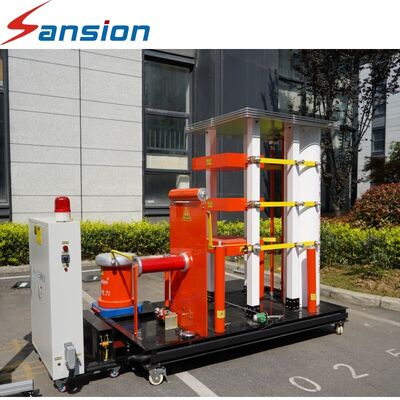

Large Image : 300 kV 15 kJ Lightning Impulse Generator and Test System for Electrical Transformer Product Development Design IEC FAT Type Testing

Product Details:

Place of Origin:	China
Brand Name:	Sansion Power
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXCY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	L/C,T/T

Contact Now Chat Now

300 kV 15 kJ Lightning Impulse Generator and Test System for Electrical Transformer Product Development Design IEC FAT Type Testing

Description

Impulse Voltage:	300kV	Impulse Energy:	15kJ
Test Category:	Lightning Impulse Testing	System Structure:	Integrated Testing System
Main Functions:	Impulse Generation And Performance Evaluation	Applicable Equipment:	Electrical Products And Components
Product Type:	Lightning Impulse Generator And Test System	Applicable Standard:	IEC 60060
Highlight:	300 kV lightning impulse generator , 15 kJ impulse voltage test system , IEC transformer impulse type testing

Product Description

300kV 15kJ Lightning Impulse Generator and Test System

The 300kV 15kJ Lightning Impulse Generator and Test System is intended for companies and laboratories involved in electrical product development and performance analysis. It provides impulse voltage testing capability to study equipment behavior under lightning impulse conditions.

During product development, engineers need effective testing methods to verify design performance and improve reliability. This system provides a testing platform for research, evaluation, and technical improvement of applicable electrical products.

Product Parameters

Product Type: Lightning Impulse Generator and Test System

Impulse Voltage: 300kV

Impulse Energy: 15kJ

Application: Product Development and Performance Analysis

Test Category: Lightning Impulse Testing

Applicable Equipment: Electrical Products and Components

System Structure: Integrated Testing System

Main Functions: Impulse Generation and Performance Evaluation

Applicable Standard: IEC 60060

Product Advantages

1. Development Testing Support
Provides testing capability during electrical product design stages.

2. Performance Analysis Function
Helps engineers study equipment response under impulse conditions.

3. Engineering Application Focus
Suitable for technical evaluation and improvement projects.

4. Professional Testing Platform
Provides a dedicated solution for electrical product research.

Application Scenarios

Electrical product R&D centers
University research laboratories
Power equipment development departments
Testing and certification organizations
Engineering innovation projects

FAQ

Q1: Who usually needs this system?
A: Research institutions, manufacturers, and engineering teams may require this equipment.

Q2: What is the purpose of impulse testing during development?
A: It helps analyze product performance under impulse voltage conditions.

Q3: What products can be evaluated?
A: Applicable electrical equipment and components can be evaluated according to testing requirements.

Q4: Can the system support customized projects?
A: Yes, system design can be discussed according to project requirements.
