300 kV 15 kJ High Voltage Lightning Impulse Generator and Test System for Transformer Switchgear CT PT Electrical Equipment Insulation and Type Testing

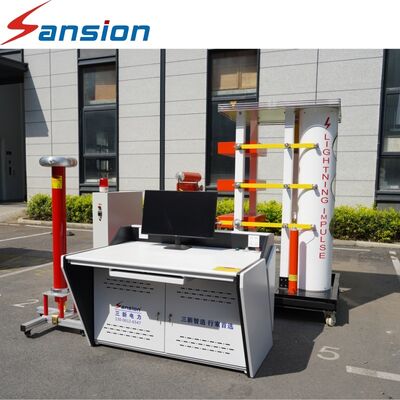

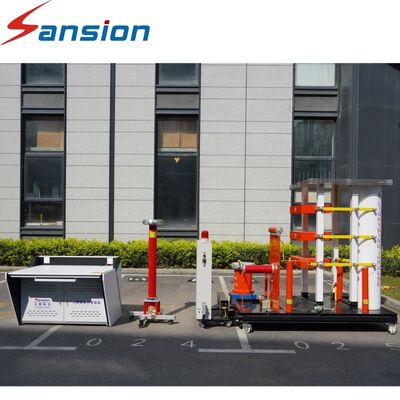

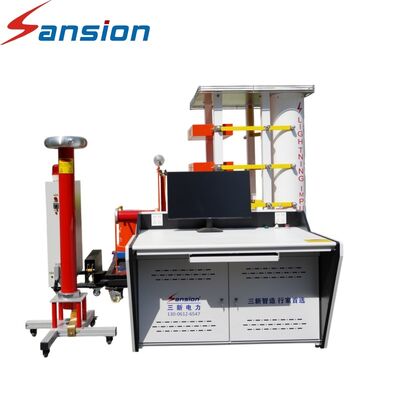

Large Image : 300 kV 15 kJ High Voltage Lightning Impulse Generator and Test System for Transformer Switchgear CT PT Electrical Equipment Insulation and Type Testing

Product Details:

Place of Origin:	China
Brand Name:	Sansion Power
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXCY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	L/C,T/T

Contact Now Chat Now

300 kV 15 kJ High Voltage Lightning Impulse Generator and Test System for Transformer Switchgear CT PT Electrical Equipment Insulation and Type Testing

Description

Impulse Voltage:	300kV	Impulse Energy:	15kJ
Test Method:	Lightning Impulse Voltage Test	System Type:	Impulse Voltage Generation Equipment
Main Function:	Lightning Impulse Generation	Test Objects:	Transformers And High Voltage Equipment
Product Type:	High Voltage Lightning Impulse Generator	Application:	Transformer And Electrical Equipment Testing
Highlight:	300 kV lightning impulse generator , 15 kJ impulse voltage test system , transformer switchgear insulation type testing

Product Description

300kV 15kJ Lightning Impulse Generator and Test System

The 300kV 15kJ Lightning Impulse Generator and Test System is designed for generating impulse voltage used in high-voltage insulation testing applications. It provides a dedicated solution for electrical equipment manufacturers requiring lightning impulse testing capability.

The system is suitable for transformer testing, electrical equipment evaluation, and insulation performance verification. With a 300kV impulse voltage rating and 15kJ energy capacity, it provides important technical references for selecting suitable impulse testing equipment.

Product Parameters

Product Type: High Voltage Lightning Impulse Generator
Impulse Voltage: 300kV
Impulse Energy: 15kJ
Application: Transformer and Electrical Equipment Testing
Test Method: Lightning Impulse Voltage Test
Test Objects: Transformers and High Voltage Equipment
System Type: Impulse Voltage Generation Equipment
Main Function: Lightning Impulse Generation
Applicable Standard: According to Customer Requirements

Product Advantages

1. Dedicated Impulse Generation

Designed for high-voltage lightning impulse testing applications.

2. Transformer Testing Support

Suitable for evaluating transformer insulation performance.

3. High Voltage Application

Provides a 300kV impulse voltage capability.

4. Professional Testing Equipment

Designed for industrial and laboratory high-voltage testing environments.

Application Scenarios

Transformer factories
High voltage equipment manufacturers
Electrical testing laboratories
Power equipment inspection centers
Research and development facilities

FAQ

Q1: What is a lightning impulse generator used for?

A: It is used to generate impulse voltage for insulation testing of electrical equipment.

Q2: What is the rated energy of this generator?

A: The rated impulse energy is 15kJ.

Q3: Which equipment can use this generator?

A: It can be applied to suitable transformer and high-voltage equipment testing projects.

Q4: How can customers select the right model?

A: Selection depends on test voltage, energy requirements, test object, and application conditions.
