200 kV 15 kJ Mobile Lightning Impulse Generator and Test System for Power Equipment Manufacturers' High-Voltage Dielectric Testing and Insulation Evaluation

Product Description

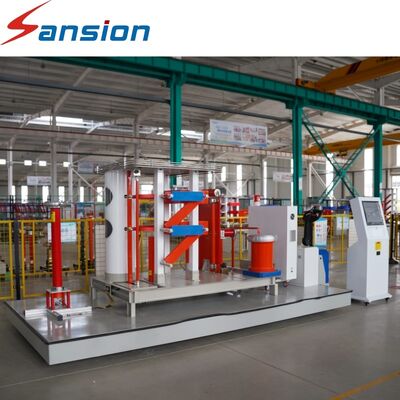

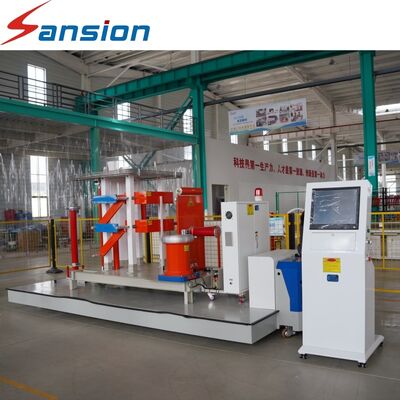

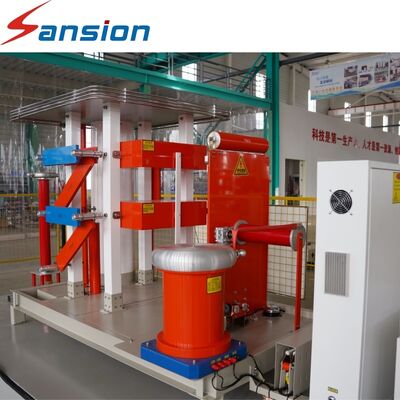

200kV 15kJ Mobile Lightning Impulse Generator and Test System

The 200kV 15kJ Mobile Lightning Impulse Generator Test System is designed for high-voltage lightning impulse testing where impulse generation and waveform measurement are required. With a specified 200kV impulse voltage and 15kJ energy rating, it is intended for insulation testing applications involving transformers and other listed high-voltage electrical equipment.

The system combines impulse generation, a high-voltage divider, digital acquisition, and system control as specified for this configuration. The 1.2/50μs standard impulse waveform supports lightning impulse testing procedures. Its mobile test platform provides a mobile arrangement for suitable testing applications in electrical equipment manufacturing and high-voltage laboratories.

Product Parameters

Product Advantages

1. Lightning Impulse Generation: Designed to provide impulse voltage for applicable high-voltage testing.
2. Digital Waveform Acquisition: Combines voltage measurement with digital waveform recording.
3. Specified Test Ratings: Provides 200kV impulse voltage and 15kJ impulse energy ratings.
4. Integrated Functional Arrangement: Combines impulse generation, waveform measurement, and system control.

Application Scenarios

1. Power transformer insulation testing
2. GIS and switchgear impulse testing
3. Cable insulation evaluation
4. Insulator and bushing testing
5. High-voltage equipment manufacturing
6. Electrical testing laboratories
