200kV 15kJ Lightning Impulse Generator and Test System for High Voltage Laboratories Transformer Testing and Electrical Insulation Research

Product Description

200kV 15kJ Lightning Impulse Test System

The 200kV 15kJ Lightning Impulse Test System is intended for high-voltage laboratories and electrical testing facilities conducting lightning impulse insulation tests. It provides a defined impulse voltage and energy rating for evaluating the insulation performance of applicable power equipment and high-voltage components.

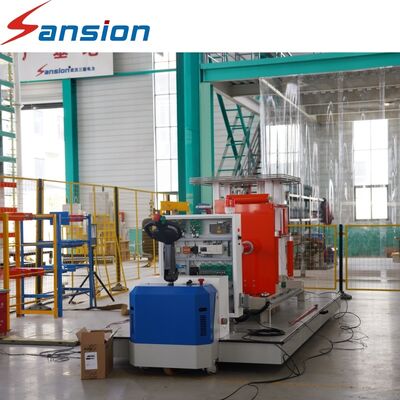

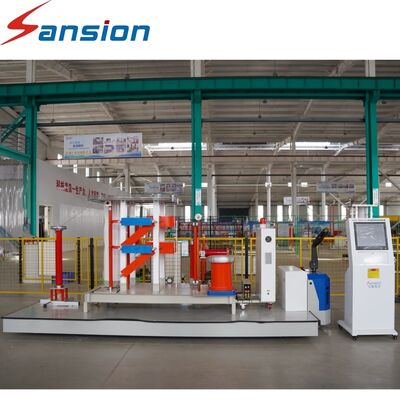

The system uses a 1.2/50μs standard impulse waveform and incorporates a high-voltage divider with digital acquisition for waveform measurement. Its main functions include impulse generation, waveform measurement, and system control. These functions support structured test procedures in laboratory environments, while the mobile platform provides a mobile system configuration for suitable applications.

Product Parameters

Product Advantages

1. Laboratory Testing Application: Intended for high-voltage impulse testing and insulation evaluation.
2. Defined Waveform: Specifies a 1.2/50μs standard lightning impulse waveform.
3. Digital Data Acquisition: Supports measurement and recording of impulse waveform data.
4. Mobile Platform Arrangement: Provides a mobile configuration for suitable laboratory or testing environments.

Application Scenarios

• High-voltage testing laboratories
• Electrical insulation research facilities
• Power equipment R&D departments
• Transformer testing laboratories
• Electrical component evaluation centers
• High-voltage engineering institutions
