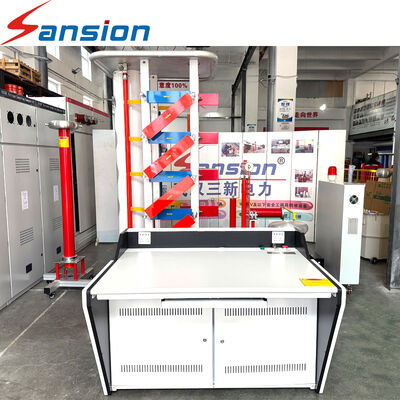

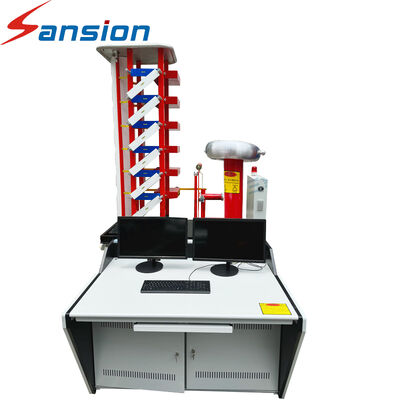

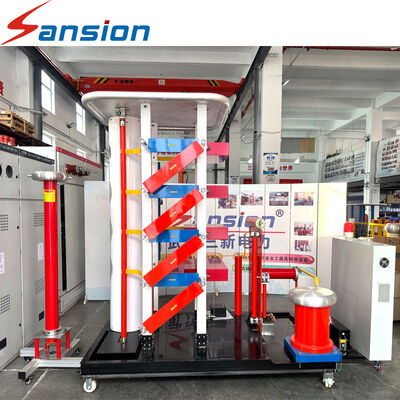

Complete Lightning Impulse Test System with High Voltage Generator, Measuring Divider and Digital Waveform Recorder Integrated Insulation Testing Solution for Power Equipment Laboratories

The Complete Lightning Impulse Test System is designed for customers who need a coordinated solution rather than an impulse generator alone.

A complete test installation may include the impulse voltage generator, DC charging unit, wave-shaping network, high-voltage measuring divider, digital transient recorder, control console, test connections, safety interlocks, and associated accessories.

By defining the generator, measuring equipment, control interfaces, and safety provisions together, customers can establish a more coherent laboratory configuration and reduce uncertainty when coordinating equipment from different suppliers.

The final scope of supply is customized according to the test objects, required voltage levels, waveform specifications, laboratory layout, and project requirements.

Generates the specified impulse voltage using the selected generator architecture and rating.

Charges the impulse generator according to the configured charging requirements.

Shapes the output waveform to meet the required impulse characteristics under the specified test conditions.

Provides a suitable measurement signal for impulse voltage measurement, subject to the divider's ratings and performance.

Captures impulse waveforms and supports analysis of relevant voltage and timing parameters.

Provides the configured interface for charging, operation, monitoring, and test management.

Supports the agreed safety architecture, which may include access interlocks, emergency stop arrangements, grounding provisions, and residual-voltage discharge functions.

• Lightning impulse full-wave testing
• Chopped-wave testing when configured
• Switching impulse testing when configured
• High-voltage waveform measurement
• Digital waveform recording
• Test data management according to the selected software
• Support for specified insulation withstand test procedures

Coordinated technical configuration: Equipment components are selected with the intended test application in mind.

Clearer supply scope: Customers can identify which measuring equipment, cables, accessories, software, and safety interfaces are included.

Simplified project coordination: A defined system interface can help reduce coordination work during procurement and installation.

Scalable design: The configuration can be reviewed according to laboratory expansion plans and future test requirements.

Q1: What is included in a complete system?

The scope can include the generator, charging unit, wave-shaping components, measuring divider, waveform recorder, control system, and agreed accessories. Every included item should be listed in the technical quotation.

Q2: Is the measuring divider included in the standard price?

This depends on the selected package. Please confirm the required divider and measurement accessories when requesting a quotation.

Q3: Can you provide waveform analysis software?

Software can be included according to the selected measurement system and reporting requirements.

Q4: Do you provide installation and commissioning?

Installation guidance, commissioning, and training can be discussed and included where available in the agreed project scope.

Q5: Can the system be integrated into an existing laboratory?

Yes, subject to technical review of the existing generator, measuring system, interfaces, layout, and safety arrangements.

Please tell us whether you require a generator only or a complete impulse testing system. Include the test voltage, required waveforms, test objects, measurement requirements, and laboratory project scope to receive a more accurate proposal.
