200kV 15kJ Mobile Lightning Impulse Generator and Test System for High Voltage Insulation Testing and Electrical Equipment Evaluation

Product Description

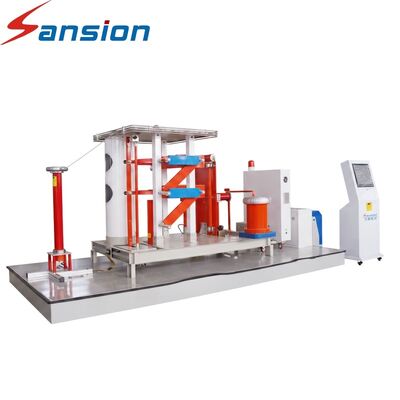

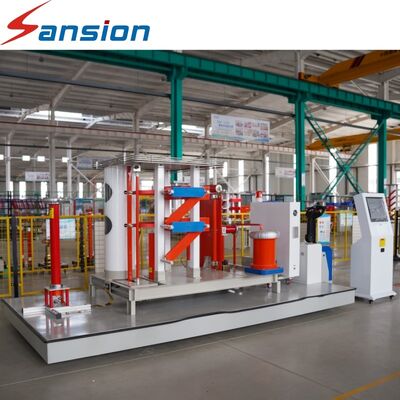

200kV 15kJ Mobile Lightning Impulse Test System

The 200kV 15kJ Mobile Lightning Impulse Test System is designed for high-voltage impulse testing of electrical equipment insulation. With a mobile test platform, it provides a testing solution for applications involving power transformers and other high-voltage equipment requiring lightning impulse voltage evaluation.

The system integrates impulse generation, waveform measurement, and system control for high-voltage testing applications. Its 1.2/50μs standard impulse waveform supports lightning impulse testing requirements. The high-voltage divider and digital acquisition system are used for voltage measurement and waveform recording, supporting insulation performance evaluation in electrical testing environments.

Product Parameters

Product Advantages

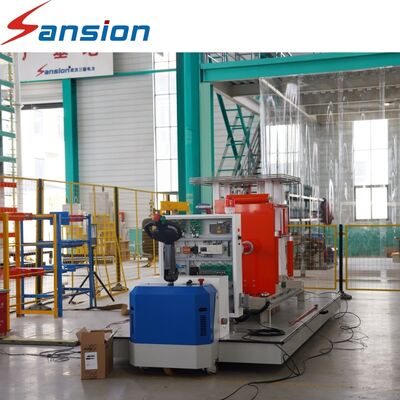

1. Mobile Test Platform: Provides a mobile configuration for suitable high-voltage testing applications.
2. 200kV Impulse Voltage: Supports lightning impulse testing within the specified voltage rating.
3. Digital Waveform Acquisition: Combines voltage measurement with digital waveform recording.
4. Integrated Testing Functions: Brings together impulse generation, waveform measurement, and system control.

Application Scenarios

• Power transformer insulation testing
• High-voltage electrical equipment testing
• GIS and switchgear insulation evaluation
• Cable insulation impulse testing
• Insulator and bushing testing
• High-voltage testing laboratories

FAQ
