Electric Motor Comprehensive Test System 0-10000kW 0-10kV AC DC Variable Frequency Motor Testing Equipment

Product Description

The Motor Comprehensive Test System is an integrated testing solution designed for comprehensive testing and performance evaluation of AC motors, DC motors, and variable-frequency motors.

The system combines an industrial computer, power supply, measurement sensors, data acquisition hardware, control software, data processing software, graphical display, and automatic test report generation. It can perform electrical safety tests, no-load tests, load tests, temperature rise tests, locked-rotor tests, torque-speed measurements, and other motor performance tests.

Key Features

• Comprehensive Testing Functions
  One system integrates multiple motor tests, including insulation resistance, power-frequency withstand voltage, inter-turn withstand voltage, no-load, locked-rotor, load, temperature rise, vibration, torque, and speed tests.

• High-Precision Measurement
  The system provides real-time monitoring of motor voltage, current, resistance, temperature, torque, speed, and other electrical and mechanical parameters.

• Automatic Test Control
  Test procedures can be configured and executed automatically through the industrial computer and control software, reducing manual operation and improving testing efficiency.

• Real-Time Data Acquisition
  The system continuously collects test data and displays measurement results in real time, making it easier to monitor the motor operating condition during testing.

• Automatic Data Processing
  Measured data can be automatically calculated, analyzed, stored, and organized by the software. Test reports can also be generated after testing.

• Flexible Test Configuration
  The system supports different motor types and test requirements and can be configured according to the motor power, voltage, current, speed, load, and other parameters.

Main Test Items

• Motor Inter-Turn Withstand Voltage Test
• Motor Power-Frequency Withstand Voltage Test
• Insulation Resistance Test
• Cold Winding Resistance Test
• No-Load Loss Test
• No-Load Current Test
• Single-Phase Voltage Measurement
• Three-Phase Voltage Measurement
• Single-Phase Current Measurement
• Three-Phase Current Measurement
• Average Resistance Measurement
• Vibration Measurement
• Temperature Measurement
• Temperature Rise Test
• Load Test
• Locked-Rotor Test
• Torque Measurement
• Speed Measurement
• Torque-Speed Characteristic Test

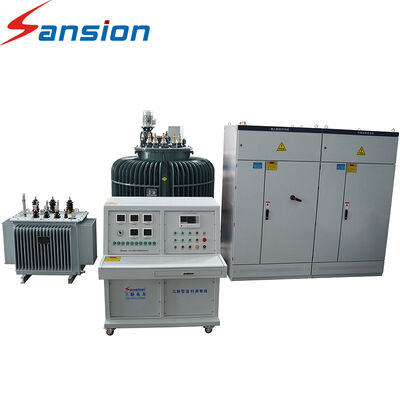

System Configuration

1. Industrial Computer
   Central control unit for test operation, data acquisition, processing, and report generation.

2. Motor Test Power Supply
   Provides controlled AC/DC or variable-frequency power according to the motor test requirements.

3. Measurement & Data Acquisition Unit
   Collects voltage, current, resistance, temperature, torque, speed, vibration, and other test parameters.

4. Load System
   Provides controllable mechanical load for motor load and performance testing.

5. Sensors
   High-precision sensors are used for electrical and mechanical parameter measurement.

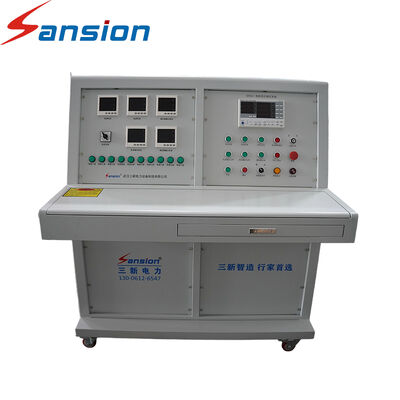

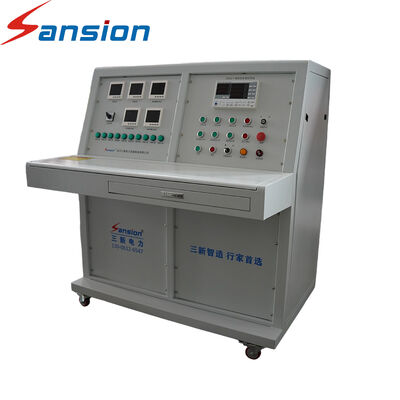

6. Control Cabinet
   Integrates the electrical control, protection, measurement, and communication components.

7. Test Software
   Provides automatic test control, data processing, graphical display, storage, and report generation.

Typical Applications

• Motor manufacturers
• Electric motor R&D laboratories
• Motor quality inspection laboratories
• Electrical equipment manufacturers
• Industrial motor testing centers
• University and research laboratories
• Third-party testing laboratories

FAQ

1. What motors can be tested with this system?
   The system can be configured for AC motors, DC motors, variable-frequency motors, high-voltage motors, low-voltage motors, and other customized motor types.

2. What tests can the system perform?
   It can perform insulation resistance, power-frequency withstand voltage, inter-turn withstand voltage, no-load, locked-rotor, load, temperature rise, vibration, torque, speed, and other tests.

3. Can the system perform high-power motor load testing?
   Yes. The configuration shown supports an actual load testing capability of up to 400 kW. Higher-capacity systems can be customized according to the motor specifications.

4. Does the system support automatic testing?
   Yes. The industrial computer and test software can control the test process, acquire measurement data, process results, and generate test reports automatically.

5. Can the system be customized?
   Yes. The test voltage, current, motor power range, load capacity, measurement functions, sensors, software functions, and other components can be customized according to the customer's motor testing requirements.
