GIS Partial Discharge Test System for Gas-Insulated Equipment High-Voltage AC Withstand Testing 100kVA 300kV SF6 Tank-Type Partial Discharge-Free Test Transformer

Product Description

GIS Partial Discharge AC Withstand Test System

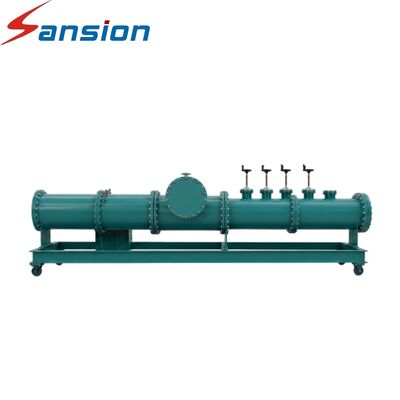

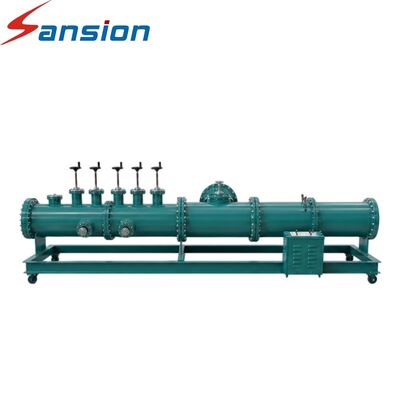

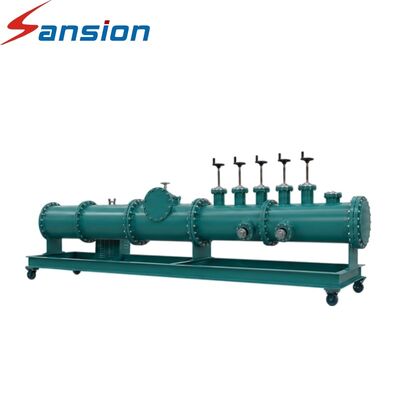

The SXGTU GIS Partial Discharge AC Withstand Test System is designed for high voltage partial discharge and withstand testing of GIS equipment. The high voltage section is fully sealed within a shielded space, providing a safe and reliable testing structure.

The system can control the overall partial discharge within 1–3 pC at rated voltage under normal environmental conditions. It supports high voltage generation through high voltage transformer boosting and series resonance, including power-frequency and variable-frequency operation. With a compact structure, lightweight components, and convenient connection with the test object, the system is suitable for high voltage testing applications requiring reliable performance.

Product Parameters

Product Advantages

1. Fully sealed high voltage structure improves testing safety and reliability.
2. Partial discharge can be controlled within 1–3 pC at rated voltage.
3. Compact design reduces installation space requirements.
4. Direct connection with the test object makes testing more convenient.

Application Scenarios

• GIS testing
• High voltage insulation testing
• Partial discharge testing
• AC withstand testing
• Electrical equipment testing

FAQ

Q1: What is the main function of SXGTU?
A1: It is designed for GIS partial discharge and withstand testing.

Q2: What is the partial discharge level?
A2: The partial discharge can be controlled within 1–3 pC at rated voltage.

Q3: What voltage levels are available?
A3: The system is available from 100 kV to 1000 kV.

Q4: Can higher voltage levels be customized?
A4: Yes, higher voltage levels can be customized.
