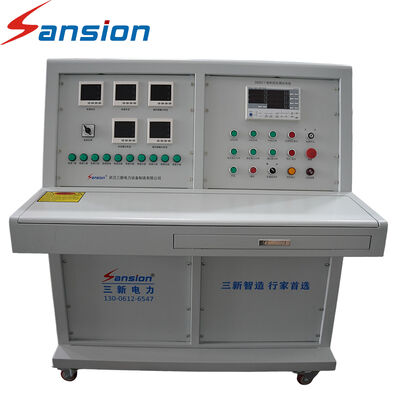

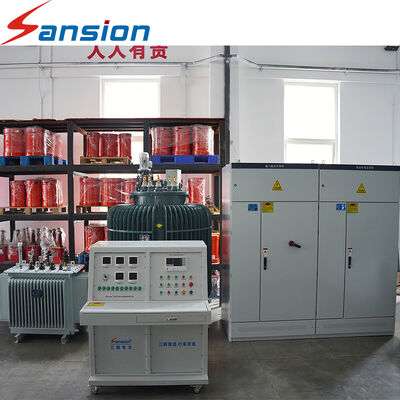

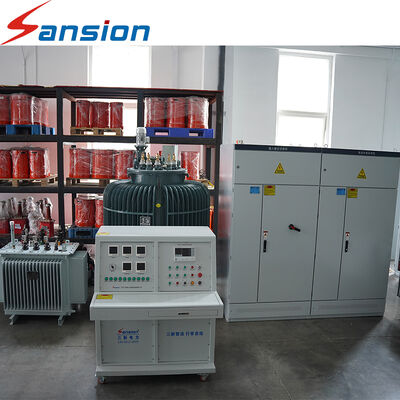

Computer Controlled Electric Motor Comprehensive Test System for 0–10 kV and up to 10000 kW Electric Motors

Product Description

The Motor Comprehensive Test System is an integrated testing platform designed to evaluate the electrical, mechanical, thermal, and load performance of motors in one centralized test environment. It supports AC motors, DC motors, and variable-frequency motors, covering motor capacities up to 10,000 kW and voltage ratings up to 10 kV.

Technical Specifications

Typical Applications

• Motor Manufacturing Plants
  For production inspection and final motor quality verification.
• Motor Repair Centers
  For post-repair and rewinding testing.
• Electrical Equipment Manufacturers
  For integrated testing of industrial drive motors and related equipment.
• Testing Laboratories
  For motor performance measurement and technical evaluation.
• Industrial Maintenance Departments
  For periodic motor condition verification and troubleshooting.
• R&D Centers
  For motor performance research and test-data acquisition.

FAQ

1. What types of motors can be tested?
   The system is designed for AC motors, DC motors, and variable-frequency motors. The final configuration depends on the motor rating and required tests.
2. What is the maximum motor power?
   The system can be configured for motors up to 10,000 kW.
3. What is the maximum motor voltage?
   The applicable motor voltage range can reach 10 kV, depending on the selected configuration.
4. Can the system perform both electrical and mechanical tests?
   Yes. The system integrates electrical measurements with mechanical parameters such as vibration, torque, speed, and load performance.
5. Can insulation resistance be tested?
   Yes. Insulation resistance testing is one of the integrated test functions.
