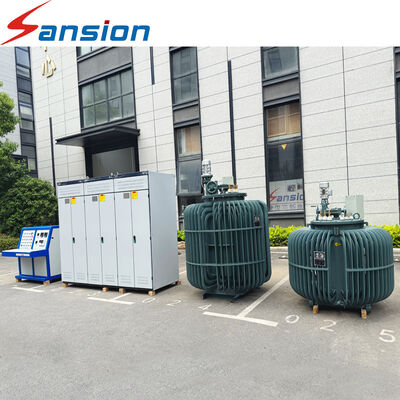

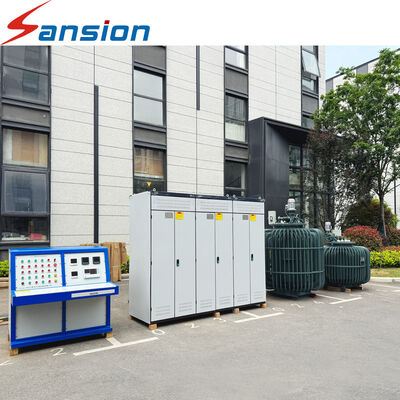

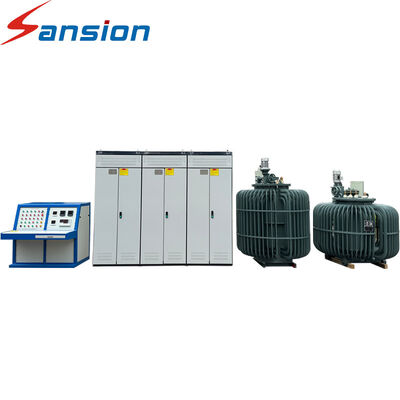

Automatic Electric Motor Test System for No-Load, Locked-Rotor, Insulation Resistance and Withstand Voltage Tests

Automatic Electric Motor Test System for No-Load, Locked-Rotor, Insulation Resistance and Withstand Voltage Tests
Automatic Electric Motor Test System for No-Load, Locked-Rotor, Insulation Resistance and Withstand Voltage Tests
Automatic Electric Motor Test System for No-Load, Locked-Rotor, Insulation Resistance and Withstand Voltage Tests Automatic Electric Motor Test System for No-Load, Locked-Rotor, Insulation Resistance and Withstand Voltage Tests Automatic Electric Motor Test System for No-Load, Locked-Rotor, Insulation Resistance and Withstand Voltage Tests Automatic Electric Motor Test System for No-Load, Locked-Rotor, Insulation Resistance and Withstand Voltage Tests

Large Image :  Automatic Electric Motor Test System for No-Load, Locked-Rotor, Insulation Resistance and Withstand Voltage Tests

Product Details:
Place of Origin: China
Brand Name: Sansion
Certification: CE/SGS/EMS/ISO 9001
Model Number: SXDJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Plywood Case
Delivery Time: 30 Working Days
Payment Terms: T/T,L/C
Contact Now Chat Now

Automatic Electric Motor Test System for No-Load, Locked-Rotor, Insulation Resistance and Withstand Voltage Tests

Description
Rated Motor Capacity: 0 To 10000 KW Working Voltage: 0 To 10 KV
Practical Load Capacity: 400 KW Power Frequency: 60 Hz
Grid Power Absorption: ≤180 KW At 400 KW Load Testing Starting Method: VFVV
Highlight:

electric motor test system for no-load

,

automatic electric motor test system

,

electric motor test system with withstand voltage

Product Introduction

The Motor Comprehensive Testing System is an integrated solution developed for the inspection, commissioning and maintenance of AC motors, DC motors and variable-frequency motors.
Covering motor capacities from 0 to 10,000 kW and voltage levels from 0 to 10 kV, the system brings together power supply, measurement, control, sensors and software in a unified testing platform.

Testing Functions

  • Inter-turn withstand voltage testing
  • Power-frequency withstand voltage testing
  • Insulation resistance testing
  • No-load current and loss measurement
  • Cold-state resistance measurement
  • Hot-state resistance measurement
  • Single-phase and three-phase voltage measurement
  • Single-phase and three-phase current measurement
  • Vibration testing
  • Temperature measurement
  • Temperature-rise testing
  • Torque and speed measurement
  • Load testing
  • Locked-rotor testing

Technical Specifications

Parameter Details
System Type Motor Comprehensive Testing System
Motor Capacity 0–10,000 kW
Motor Voltage 0–10 kV
Applicable Motor Types AC / DC / Variable-Frequency Motors
Practical Load Capacity 400 kW
Power Frequency 60 Hz
Grid Power Absorption ≤180 kW at 400 kW load testing
Starting Method VFVV
Control System Integrated Computerized Control
Measurement Electrical / Mechanical / Thermal Parameters
Data Acquisition Integrated
Test Software Integrated
Configuration Customizable

Application Areas

  • Motor Manufacturing
  • Motor Repair & Rewinding
  • Electrical Equipment Manufacturing
  • Industrial Motor Maintenance
  • Motor Testing Laboratories
  • Quality Inspection Centers
  • R&D Facilities
  • Factory Acceptance Testing

FAQ

1.What motors can be tested with this system?

The system is designed for AC motors, DC motors and variable-frequency motors.

2.What is the maximum motor capacity?

The specified testing range is up to 10,000 kW, subject to the final system configuration.

3.What is the maximum motor voltage?

The specified voltage range is 0–10 kV.

4.Can the system perform both electrical and mechanical tests?

Yes. In addition to electrical and insulation tests, the system can be configured for vibration, temperature, torque, speed and load testing.

5.Does it support load testing?

Yes. The shown configuration provides a 400 kW practical load testing capability.
