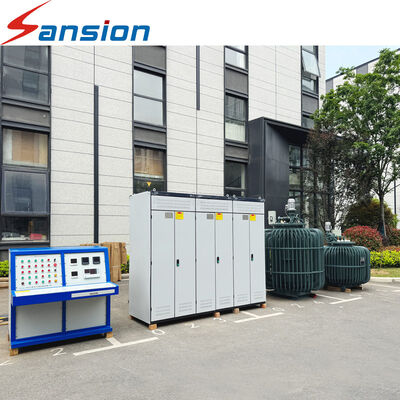

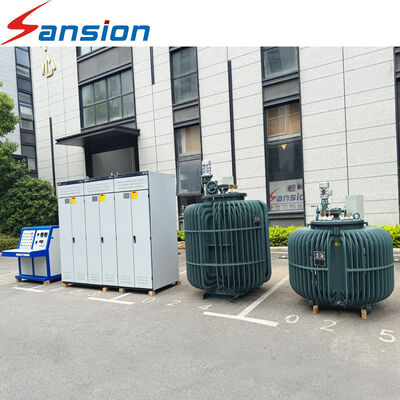

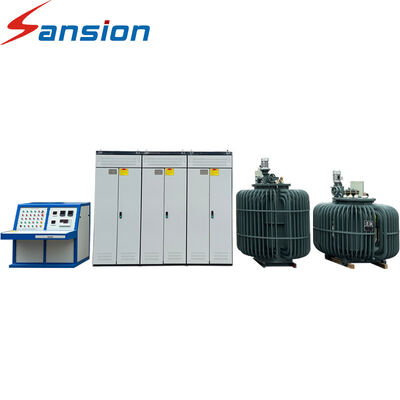

Electric Motor Comprehensive Test System for AC DC and Variable Frequency Motors up to 10000 kW and 10 kV

Product Description

The Motor Comprehensive Test System is designed for comprehensive performance testing of AC motors, DC motors and variable-frequency motors with capacities from 0 to 10,000 kW and voltages from 0 to 10 kV.

It integrates the test power supply, measurement system, control system, sensors and test software into one complete solution. The system supports electrical performance, insulation, mechanical performance, temperature and load-related tests, making it suitable for motor manufacturers, repair centers, testing laboratories and maintenance facilities.

Key Features

1. Comprehensive Motor Testing
2. Wide Motor Testing Range
3. High Measurement Accuracy
4. High Level of Automation
5. Integrated Load Testing

Technical Specifications

Note: The final system configuration can be customized according to the motor's rated power, voltage, test standards and required test items.

Typical Applications

• Motor Manufacturing Plants
  For routine factory inspection and performance verification of newly manufactured motors.
• Motor Repair & Maintenance Centers
  For comprehensive testing after motor repair, rewinding or maintenance.
• Electrical Equipment Manufacturers
  For integrated testing of motors used in industrial electrical equipment.
• Testing Laboratories
  For laboratory-based motor performance and electrical characteristic testing.
• Industrial Motor Testing Facilities
  For high-power motor load, temperature-rise and mechanical performance testing.
