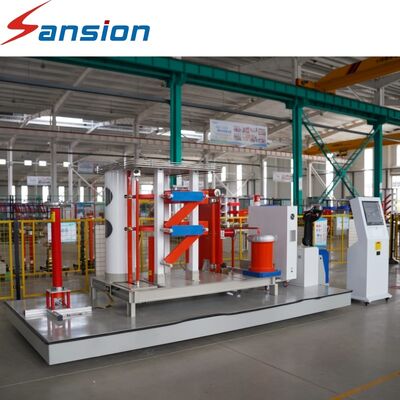

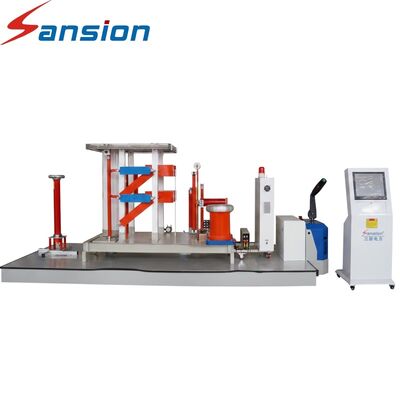

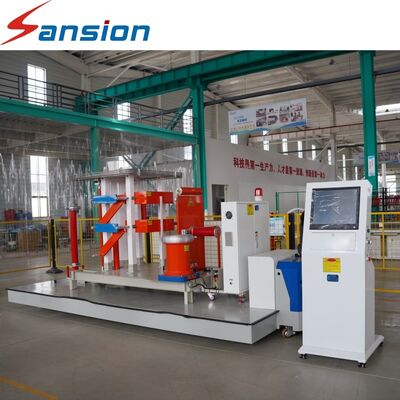

200 kV 15 kJ Portable Lightning Impulse Generator for High Voltage Equipment Manufacturers, Substation Apparatus, and Laboratory Dielectric Verification

Lightning Impulse Test System

The 200kV 15kJ High Voltage Lightning Impulse Test System is a mobile testing solution for evaluating insulation withstand performance under lightning impulse conditions. It is suitable for a wide range of electrical products, including power transformers, cables, switchgear, GIS, insulators and bushings.

The system is engineered for practical high voltage testing where equipment needs to be deployed between different laboratories, production areas or project sites. The Lightning Impulse Generator works together with the charging, wave-shaping, measurement and control units to form a complete test platform for insulation verification and electrical equipment qualification.

• Product Type: High Voltage Lightning Impulse Test System
• Impulse Voltage: 200kV
• Impulse Energy: 15kJ
• Standard Impulse: 1.2/50μs
• Configuration: Mobile Test Platform
• Test Objects: Transformers, GIS, Switchgear, Cables, Insulators and Bushings
• Measurement System: High Voltage Divider and Digital Acquisition
• Main Functions: Impulse Generation, Waveform Measurement and System Control
• Applicable Standard: IEC 60060

1. Multi-Equipment Compatibility – Applicable to various high voltage electrical products.
2. Portable Test Platform – Convenient for testing tasks across different working locations.
3. Impulse Measurement System – Supports acquisition and evaluation of the generated impulse waveform.
4. Project-Based Configuration – System components can be selected according to specific testing conditions.

• Transformer Insulation Testing
• High Voltage Cable Testing
• GIS and Switchgear Testing
• Insulator Qualification
• Substation Equipment Testing
• Mobile High Voltage Testing Services

Q1: What is this test system mainly used for?

A: It is mainly used for lightning impulse and insulation withstand testing of high voltage electrical equipment.

Q2: Can it test equipment other than transformers?

A: Yes. Applications can include cables, GIS, switchgear, bushings, insulators and other suitable electrical products.

Q3: Is the system suitable for field testing?

A: Yes. Its mobile configuration is intended for flexible deployment in suitable field and project environments.

Q4: How should the impulse generator capacity be selected?

A: Selection should consider the required test voltage, energy, waveform, test object and applicable testing standard.
