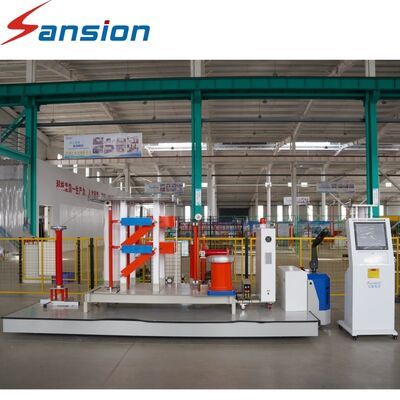

200 kV 15 kJ Lightning Impulse Generator Test Equipment for Transformer Factories, GIS Switchgear, Cable Bushing and Insulation Qualification

Product Description

200kV 15kJ Lightning Impulse Generator

Designed for transformer manufacturers, the 200kV 15kJ Lightning Impulse Generator provides controlled high voltage impulses for evaluating transformer insulation systems. It can be used for power transformers, distribution transformers, bushings and other components requiring lightning impulse and dielectric performance verification.

As a complete test equipment solution, the system includes impulse generation, capacitor charging, waveform shaping, high voltage measurement and operating control. Its configuration can be selected according to the transformer insulation level and testing requirements, making it suitable for production quality inspection, type testing and transformer development.

Product Parameters

• Product Type: Lightning Impulse Generator Test Equipment
• Maximum Impulse Voltage: 200kV
• Rated Energy: 15kJ
• Impulse Waveform: 1.2/50μs
• Test Objects: Power Transformers, Distribution Transformers and Bushings
• System Functions: Charging, Impulse Generation, Wave Shaping and Measurement
• Measurement: High Voltage Divider and Digital Measuring System
• Application: Transformer Type Test and Insulation Testing
• Standard: IEC 60060 and Applicable Requirements

Product Advantages

1. Transformer Testing Focus – Designed around insulation testing requirements of transformer products.
2. Controlled Impulse Output – Provides a stable platform for repeatable lightning impulse tests.
3. Complete High Voltage Configuration – Integrates key generation and measurement units.
4. Factory-Oriented Design – Suitable for transformer production and type-test facilities.

Application Scenarios

• Power Transformer Manufacturing
• Distribution Transformer Production
• Transformer Type Test Laboratory
• Transformer Bushing Testing
• High Voltage Product Development
• Electrical Equipment Quality Inspection

FAQ

Q1: Is it suitable for transformer type testing?

A: Yes. The system can be configured for lightning impulse insulation tests of transformers and related components.

Q2: Why is a voltage divider required?

A: It converts the high impulse voltage into a measurable signal for the measurement system.

Q3: Can the generator be used for different transformer sizes?

A: The suitable configuration depends on the required impulse voltage, energy and insulation level of the transformer.

Q4: Does Sansion Power provide customized systems?

A: Yes. Voltage, energy, measurement, control and structural configurations can be engineered according to project requirements.
