High-Voltage Test System with Impulse Voltage Generator for Power Transformer Lightning Impulse Insulation Withstand and Electrical Equipment Type Testing

Product Description

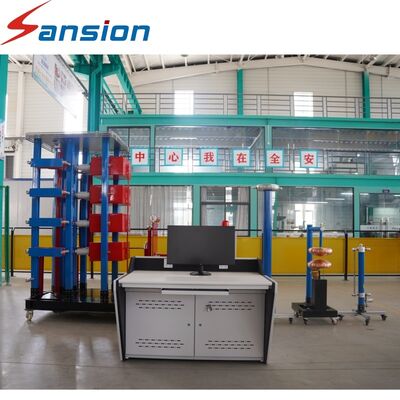

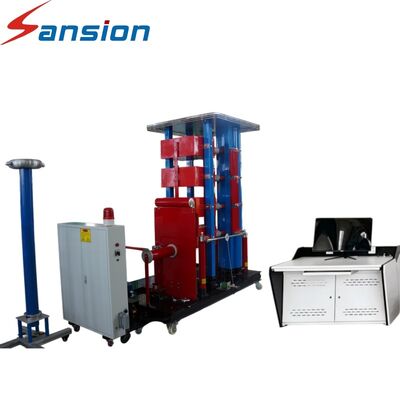

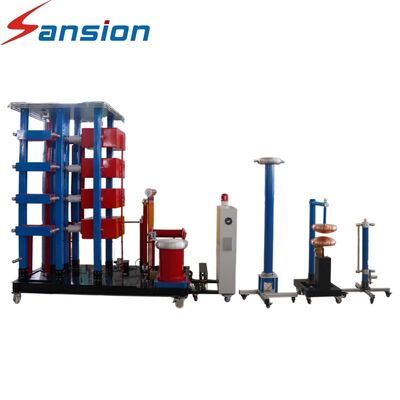

Lightning impulse voltage test system

High Voltage Impulse Test Equipment is designed for transformer manufacturers, electrical equipment producers, and high voltage laboratories that need to evaluate insulation performance under lightning impulse conditions. The system uses a high voltage impulse voltage generator to produce controlled impulse waveforms for testing power transformers, distribution transformers, bushings, GIS, switchgear, cables, and other high voltage products.

The complete testing platform can integrate impulse generation, charging, wave-shaping, high voltage measurement, control, and protection functions. It provides a practical solution for lightning impulse withstand testing, transformer type tests, insulation verification, product development, and factory quality inspection according to applicable IEC standards and customer requirements.

Product Parameters

• Product Type: High Voltage Impulse Test Equipment
• Generator Type: Impulse Voltage Generator
• Standard Waveform: 1.2/50 μs Lightning Impulse
• Test Voltage: Customized according to test object
• Impulse Energy: Designed according to testing requirements
• Main Components: Impulse Generator, Charging Unit, Wave-Shaping Resistors, Voltage Divider, Control and Measuring System
• Test Objects: Power Transformer, GIS, Switchgear, Cable, Bushing, Insulator and Other HV Equipment
• Reference Standard: IEC 60060 and applicable project requirements

Product Advantages

1. Professional Impulse Test Equipment
   Provides a complete high voltage platform for lightning impulse and insulation withstand testing.
2. Accurate Impulse Voltage Generation
   The impulse voltage generator produces controlled waveforms for reliable high voltage testing.
3. Integrated Measurement and Control
   Combines voltage measurement, waveform analysis, control, and safety protection functions.
4. Flexible System Configuration
   The voltage, energy, measurement system, and test arrangement can be configured according to the customer's requirements.

Application Scenarios

• Power Transformer Manufacturers
  Used for lightning impulse testing of power and distribution transformers.
• Transformer Type Test Laboratories
  Supports insulation performance verification and transformer qualification testing.
• GIS and Switchgear Manufacturers
  Applied for impulse withstand testing of high voltage apparatus.
• Cable Manufacturing Plants
  Used to evaluate cable insulation performance under impulse voltage.
• High Voltage Research Laboratories
  Supports insulation research, product development, and technical evaluation.
• Electrical Equipment Testing Centers
  Provides impulse test equipment for type testing and product verification.

FAQ

1. Q1: What is an impulse test equipment used for?
   A: It is used to evaluate the insulation withstand capability of electrical equipment under high voltage impulse conditions.
2. Q2: What is an impulse voltage generator?
   A: It is the main high voltage generation unit that produces controlled impulse voltage for electrical insulation testing.
3. Q3: Can it test power transformers?
   A: Yes. It can be designed for lightning impulse tests of power transformers and distribution transformers.
4. Q4: Can the system be customized?
   A: Yes. Sansion Power can customize the generator capacity, measurement system, control configuration, and test layout according to project requirements.
