AC DC Motor Comprehensive Test System & Electric Motor Test Bench for No-Load, Load, Efficiency, Torque, Speed, Insulation and Withstand Voltage Testing

Product Description

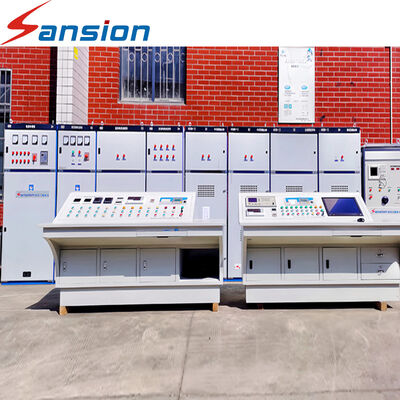

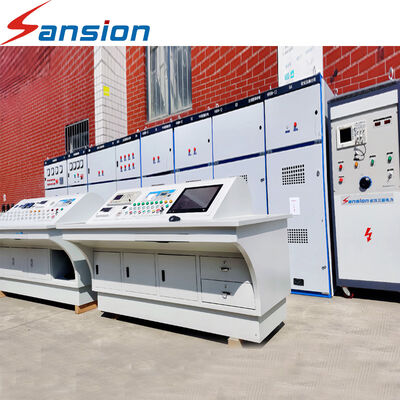

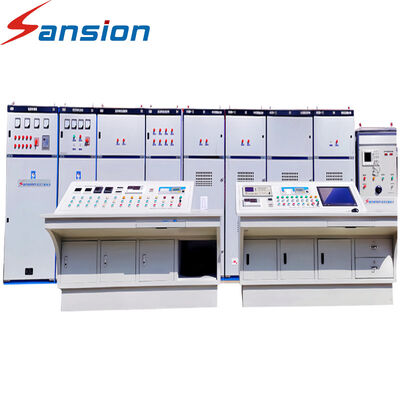

The AC DC Motor Comprehensive Test System is an integrated electric motor test bench developed for complete electrical and performance evaluation of industrial motors.

Instead of using multiple independent instruments for different measurements, the system combines test power supply, measurement instruments, sensors, control equipment, data acquisition and professional software into one centralized testing platform.

It is suitable for production testing, factory acceptance testing, maintenance testing and engineering verification of different types of motors.

Testing Functions

The system can be configured to perform:

• DC winding resistance test
• Insulation resistance test
• AC withstand voltage test
• No-load test
• Load test
• No-load current measurement
• No-load loss measurement
• Input/output power measurement
• Efficiency calculation
• Torque measurement
• Speed measurement
• Starting current measurement
• Locked-rotor test
• Temperature measurement
• Vibration measurement
• Voltage/current balance test

Why Choose a Comprehensive Motor Test System?

A comprehensive testing platform can reduce the need for operators to manually move the motor between different test stations.

The complete test process can be programmed through the control software, helping manufacturers standardize testing procedures and improve production consistency.

FAQ

Q: What is a motor comprehensive test system?

A: It is an integrated test platform combining multiple electrical and mechanical motor tests into one controlled system.

Q: Is it suitable for factory production lines?

A: Yes. The system can be configured for production inspection, end-of-line testing and laboratory applications.

Q: Can different motor models be tested on the same system?

A: Yes. Multiple motor models can be supported by configuring different test programs, fixtures and measurement ranges.

Q: Does the system support automatic pass/fail judgment?

A: Yes. Test limits can be configured in the software for automatic evaluation.
