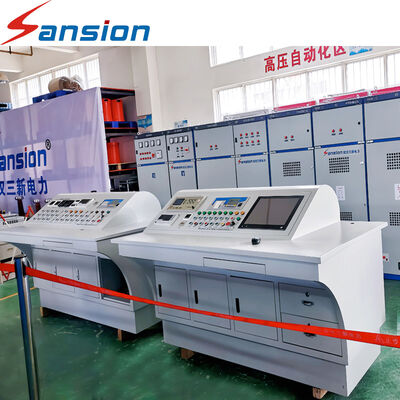

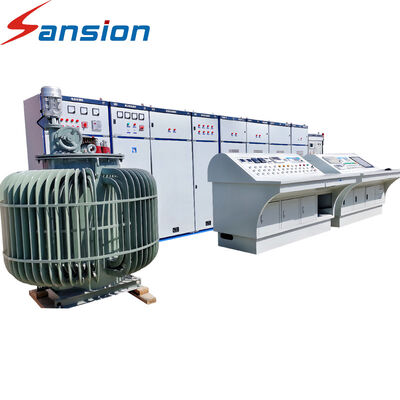

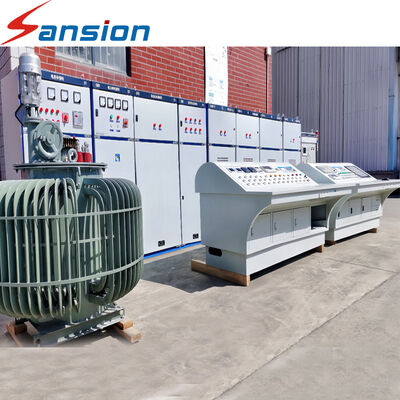

Automatic Electric Motor Test Bench & Comprehensive Motor Testing System for AC DC Motors, Performance, Efficiency, Insulation and Hi-Pot Testing

The Automatic Electric Motor Test Bench is a comprehensive motor testing system designed for manufacturers, repair centers, testing laboratories and quality inspection departments that require reliable and efficient testing of AC motors, DC motors and variable frequency motors.

The system integrates electrical measurement, insulation testing, performance evaluation, data acquisition and automatic test control into one complete motor testing platform. It can be customized according to motor type, rated voltage, power range, testing standards and customer-specific production requirements.

With automated test sequences and centralized software control, operators can complete multiple motor tests from a single workstation, reducing manual operation and improving testing consistency, traceability and production efficiency.

• Winding resistance measurement
• Insulation resistance testing
• AC withstand voltage / Hi-Pot testing
• No-load current and no-load loss testing
• Load performance testing
• Voltage and current measurement
• Input and output power measurement
• Motor efficiency calculation
• Torque and speed measurement
• Starting current measurement
• Locked-rotor testing
• Temperature rise testing
• Vibration monitoring
• Three-phase voltage and current balance
• Automatic test sequence control
• Test data acquisition and analysis
• Automatic test report generation

• Comprehensive testing in one integrated platform
• Automatic test sequence and pass/fail evaluation
• Suitable for AC, DC and variable frequency motors
• High-accuracy electrical measurement
• Modular and customizable configuration
• Digital data acquisition and automatic reporting
• Suitable for factory testing and laboratory applications
• Supports future system expansion

• Electric motor manufacturers
• Industrial motor factories
• Motor repair and maintenance centers
• Electrical equipment manufacturers
• Quality inspection laboratories
• R&D and engineering laboratories
• Industrial testing centers

Q: What types of motors can this test bench test?

A: The system can be configured for AC motors, DC motors and variable frequency motors. The final configuration depends on motor power, voltage, current, speed and required test items.

Q: Can the system perform both electrical and performance tests?

A: Yes. Depending on configuration, the system can combine electrical safety tests with no-load, load, efficiency, torque and speed measurements.

Q: Can the motor test bench be customized?

A: Yes. Sansion Power provides customized motor test systems according to motor specifications, testing standards, factory layout and required test items.

Q: Can the system automatically generate test reports?

A: Yes. The software can record test data, evaluate results against preset limits and generate electronic test reports.
