Low Partial Discharge 50kV AC Withstand Testing Equipment 5kVA Power Frequency Test System with Electric Control Console for High Voltage Insulation Evaluation

Product Description

5kVA/50kV Power Frequency PD-Free AC Withstand Test System

The 5kVA/50kV Power Frequency PD-Free AC Withstand Test System is a specialized high-voltage solution for manufacturers that need to verify insulation performance during electrical product production. It applies power-frequency AC voltage to the test object while maintaining a low partial discharge background from the test source.

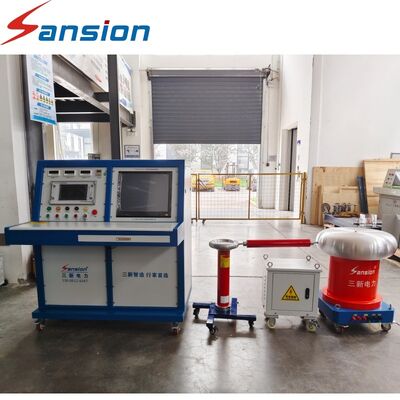

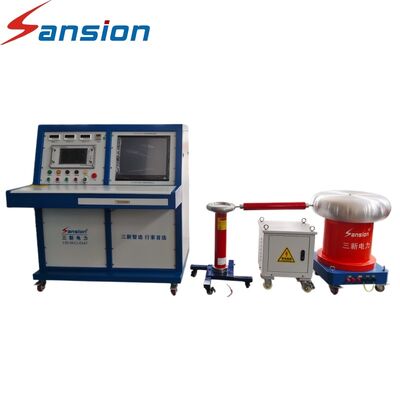

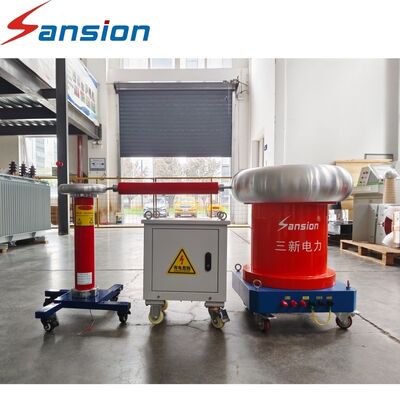

The system incorporates a Motorized Operation Console, Power Supply, PD-Free Test Transformer, and Voltage Divider. The electric console controls the voltage application process, while the dedicated transformer provides the required high-voltage output. The voltage divider enables high-voltage measurement, allowing the complete equipment to be used as an integrated factory testing station.

Product Parameters

Product Advantages

• Factory Inspection Ready — Suitable for incorporating insulation withstand testing into production quality control.
• Low-PD Test Source — Reduces unwanted discharge originating from the high-voltage transformer.
• Electric Voltage Regulation — Makes repeated production tests easier to operate.
• Integrated Measurement — Includes a dedicated voltage divider for high-voltage measurement.
• Complete System Configuration — Eliminates the need to separately match the principal testing components.

Application Scenarios

1. Transformer manufacturing factories
2. Distribution transformer production
3. Electrical equipment production lines
4. Factory quality control laboratories
5. Transformer routine inspection
6. Electrical product acceptance testing

FAQ

Q1: Is this system suitable for transformer manufacturers?

A: Yes. It is suitable for applicable insulation withstand and low-PD testing procedures during transformer production.

Q2: What is the test voltage?

A: The standard configuration provides up to 50kV AC power-frequency test voltage.

Q3: How is the voltage controlled?

A: Voltage is regulated through the motorized operation console.

Q4: What are the main components?

A: Motorized operation console, power supply, PD-free test transformer, and voltage divider.
