220kV High Voltage Testing System for Power Transformer, GIS, Circuit Breaker, Current Transformer, Voltage Transformer and Insulators

Product Introduction

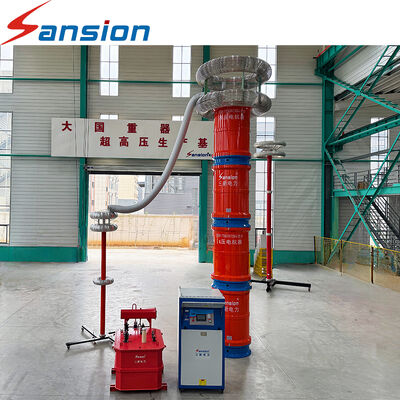

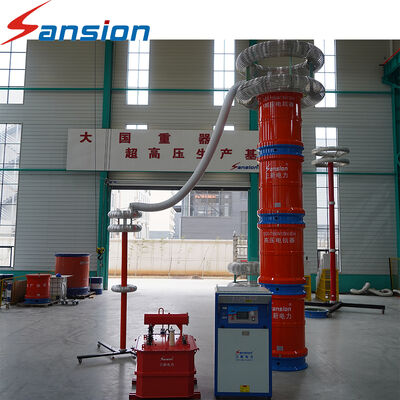

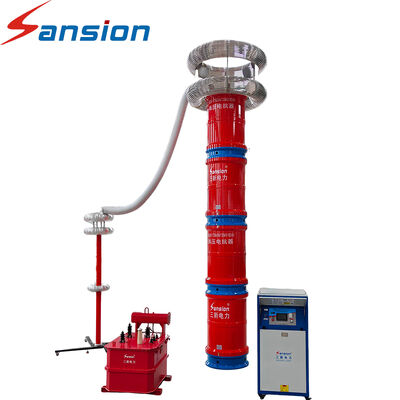

The SXBP Variable Frequency Series Resonance Test System provides a controlled and efficient approach to high-voltage AC withstand testing where conventional high-power test sources may become impractical. The system combines a variable-frequency power source, excitation transformer, resonant reactor and protection components to create a controllable resonant circuit. By tuning the operating frequency to the characteristics of the test load, high AC test voltages can be generated for demanding insulation verification.

Technical Specifications

Why Choose a Variable-Frequency Resonance System?

Application Scope

• Power Transmission
  High-voltage cable and substation equipment testing.
• Power Distribution
  Switchgear, transformers and insulation system verification.
• Electrical Manufacturing
  Factory withstand testing of HV electrical products.
• Testing Laboratories
  Routine, acceptance and specialized high-voltage tests.
• EPC & Commissioning
  On-site testing during installation and energization projects.

FAQ

1. What is the difference between the SXBP system and a conventional AC hipot system?
   The SXBP system uses a resonant circuit in which the test object's capacitance participates in the testing process. The operating frequency is adjustable, allowing the system to establish resonance according to the characteristics of the load.
2. Is SXBP suitable for long cable testing?
   Yes. Long HV/EHV cables are one of the typical applications because their distributed capacitance makes resonance testing particularly useful.
3. What cable voltage classes can be covered?
   The system can be configured for applications involving 110 kV, 220 kV, 500 kV and other voltage classes, subject to the actual test parameters.
4. Can SXBP be used for GIS testing?
   Yes. It can be used for AC withstand testing of GIS and SF6-insulated switchgear in appropriate configurations.
5. Can the system test transformers?
   Yes. A suitable configuration can be developed according to the transformer's required test voltage, capacitance, test duration and other electrical parameters.
