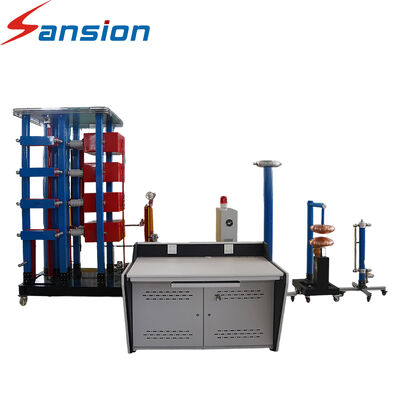

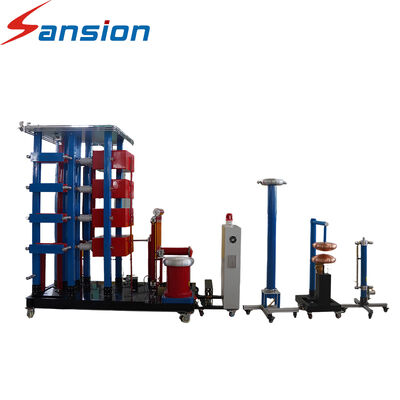

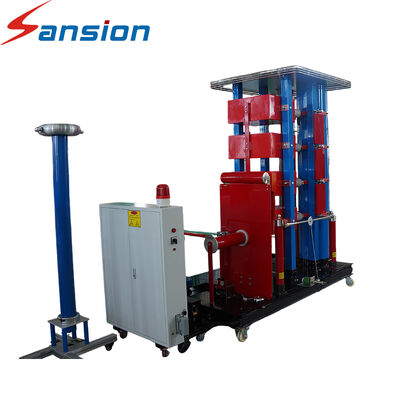

High Voltage Impulse Voltage Generator for Lightning Impulse and Switching Impulse Tests of Transformers and Power Equipment

The SXCY Series High-Voltage Impulse Generator is engineered for dielectric and insulation performance testing of high-voltage electrical equipment under simulated transient overvoltage conditions.

The system generates controlled high-energy impulse voltages to reproduce the electrical stress associated with lightning strikes, switching operations and other transient events. It is designed to provide a reliable testing platform for transformer manufacturers, power utilities, electrical equipment manufacturers, research institutions and high-voltage laboratories.

• High-Voltage Testing Capability
  The SXCY Series supports nominal voltage configurations ranging from ±100 kV to ±4800 kV, covering a wide range of high-voltage impulse testing requirements.
• Scalable Multi-Stage Structure
  With configurations from 1 to 24 stages, the generator can be matched to different required output voltage levels and impulse energy requirements.
• Configurable Impulse Energy
  The available configurations provide impulse energy from approximately 7.31 kJ to 320 kJ, enabling the system to address different test-object requirements.
• Adaptable Electrical Parameters
  Impulse capacitance and grading capacitance can be selected according to the required test configuration, providing greater flexibility when designing a high-voltage laboratory.
• Designed for Professional Test Laboratories
  The SXCY Series can be integrated into complete impulse testing systems together with charging, measuring, control and waveform recording equipment.
