Product Description

5kVA/50kV Power Frequency PD-Free AC Withstand Test System

The 5kVA/50kV Power Frequency PD-Free AC Withstand Test System is intended for electrical testing work in power generation facilities. It supplies a controlled AC high voltage for checking the dielectric withstand capability of compatible transformers, generator-related equipment, and other electrical apparatus during factory inspection, maintenance, or commissioning.

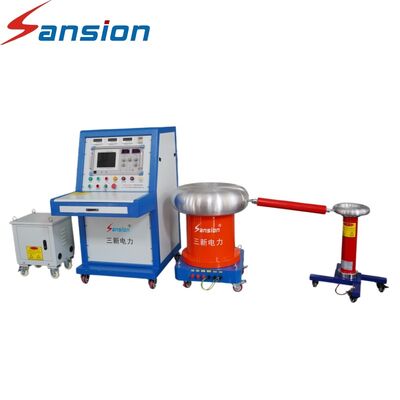

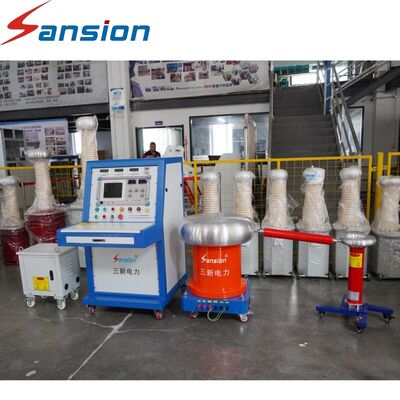

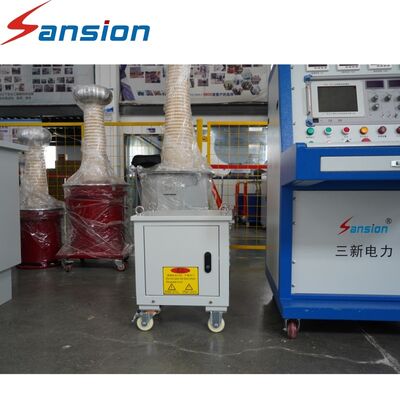

A complete system includes a Motorized Operation Console, Power Supply Unit, PD-Free Test Transformer, and Voltage Divider. The console manages the voltage application process, while the dedicated test transformer produces the 50kV AC output under a low-discharge design. The voltage divider is used to obtain the corresponding high-voltage measurement signal, allowing operators to monitor the test voltage throughout the procedure.

Product Parameters

Product Advantages

• Designed for Power Generation Facilities — Fits routine electrical insulation testing requirements within power plants.
• PD-Free High-Voltage Source — Helps limit unwanted discharge from the testing equipment itself.
• Motorized Test Operation — Makes voltage application more convenient during repeated inspection procedures.
• Dedicated Measurement Path — The voltage divider supports high-voltage measurement during testing.
• Suitable for Equipment Maintenance — Can be incorporated into maintenance and commissioning workflows.
• Coordinated System Design — The control, power, transformer, and measurement units are supplied as a matched configuration.

Application Scenarios

1. Large power plants
2. Thermal power stations
3. Hydroelectric power plants
4. Generator maintenance departments
5. Power transformer inspection
6. Electrical equipment commissioning
7. Power generation equipment maintenance

FAQ

Q1: Can this system be used in a power plant?

A: Yes. It can be applied to suitable insulation withstand testing tasks in power generation facilities.

Q2: What does the 5kVA rating indicate?

A: It represents the rated capacity of the high-voltage test transformer and is one of the key factors for matching the test load.

Q3: Does the system include a voltage measuring device?

A: Yes. A voltage divider is included as part of the standard system configuration.

Q4: Can Sansion Power provide a different voltage rating?

A: Yes. Sansion Power can customize the voltage, capacity, control, and measurement configuration according to the customer's test requirements.
