Product Description

5kVA/50kV Power Frequency PD-Free AC Withstand Test System

The 5kVA/50kV Power Frequency PD-Free AC Withstand Test System provides a controlled power-frequency high-voltage source for insulation withstand testing of electrical equipment. It is particularly suitable for power utilities and maintenance departments that need to verify insulation performance during equipment inspection, repair, and commissioning.

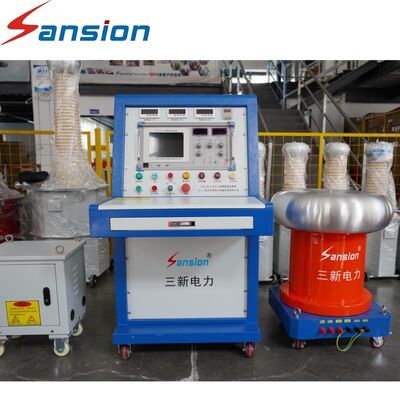

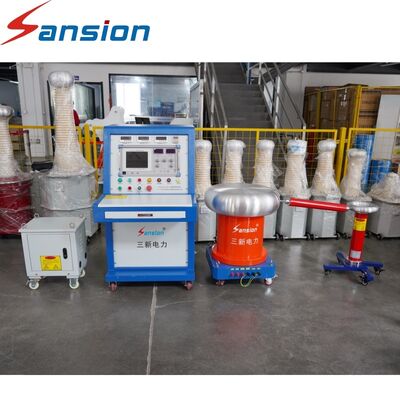

The system is composed of a Motorized Operation Console, Power Supply, PD-Free Test Transformer, and Voltage Divider. The motorized console is used to regulate the applied voltage, while the PD-free test transformer generates the required high-voltage AC output with a low partial discharge background. The voltage divider provides voltage measurement for the high-voltage circuit, creating a coordinated system for professional AC withstand testing.

Product Parameters

Product Advantages

• Low-PD Testing Source — Reduces discharge generated by the high-voltage source during applicable insulation withstand tests.
• Power-Frequency AC Output — Provides a conventional AC test method for electrical insulation verification.
• Electric Voltage Regulation — Allows testing personnel to control voltage application from the operation console.
• Integrated High-Voltage Measurement — The voltage divider provides a dedicated means of monitoring the applied voltage.
• Utility-Friendly Configuration — Suitable for regular inspection and maintenance work involving electrical power equipment.
• Complete System Supply — Major operating and high-voltage components are matched as one testing solution.

Application Scenarios

• Power supply companies
• Substation maintenance departments
• Utility electrical testing
• High-voltage equipment inspection
• Power equipment commissioning
• Electrical maintenance projects

FAQ

Q1: What type of testing does this system perform?

A: It performs power-frequency AC withstand testing in a low partial discharge background.

Q2: Why is a PD-free test transformer used?

A: It helps minimize discharge generated by the test source, which is important when a cleaner high-voltage testing environment is required.

Q3: Is the voltage adjustment motorized?

A: Yes. The system uses a motorized operation console for voltage regulation.

Q4: What are the main components?

A: The system consists of a motorized operation console, power supply, PD-free test transformer, and voltage divider.
