Product Description

5kVA/50kV Partial Discharge-Free AC Test System

The 5kVA/50kV Partial Discharge-Free AC Test System provides a specialized high-voltage testing platform for users who need to examine insulation performance under power-frequency AC voltage with reduced background discharge. It is particularly suitable for transformer manufacturers and electrical laboratories conducting insulation quality evaluation and high-voltage acceptance tests.

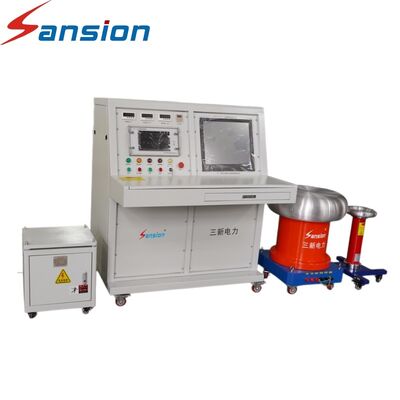

The system consists of a Motorized Operation Console, Power Supply, PD-Free Test Transformer, and Capacitive Voltage Divider. The control console manages the voltage application process, while the dedicated test transformer produces the required AC high voltage with low partial discharge characteristics. A capacitive voltage divider is incorporated for high-voltage measurement, allowing the complete test circuit to be operated as an integrated system.

Product Parameters

Product Advantages

• Transformer Testing Focused — Suitable for insulation evaluation during transformer production and development.
• Reduced Discharge Interference — The PD-free transformer helps create a cleaner electrical environment for sensitive high-voltage testing.
• Motorized Operation — Electric voltage adjustment improves convenience during repeated test procedures.
• Integrated Voltage Measurement — The divider provides a dedicated method for monitoring the high-voltage output.
• Complete Equipment Matching — Major components are configured as a coordinated testing system.
• Suitable for Laboratory and Factory Use — Can support both production inspection and technical testing applications.

Application Scenarios

1. Power transformer insulation testing
2. Distribution transformer testing
3. Transformer R&D laboratories
4. High-voltage component testing
5. Insulation system evaluation
6. Electrical equipment quality inspection

FAQ

Q1: Why is a PD-free transformer important?

A: It helps reduce unwanted partial discharge generated by the test equipment itself, providing a cleaner background for insulation testing.

Q2: What is the role of the capacitive voltage divider?

A: It is used to measure the high-voltage output of the test system and provide a suitable measurement signal.

Q3: Is voltage regulation motorized?

A: Yes. The system is equipped with a motorized operation console.

Q4: Is the system only suitable for transformers?

A: No. It can also be configured for other electrical insulation testing applications where the voltage and capacity requirements are compatible.
