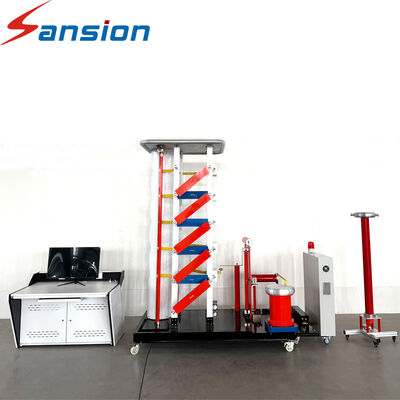

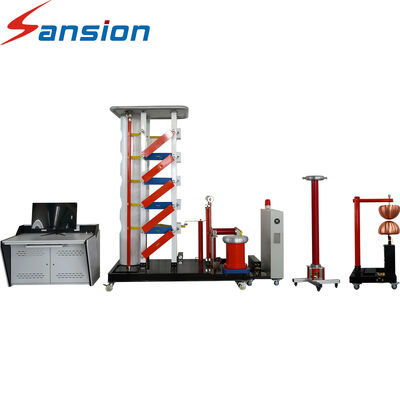

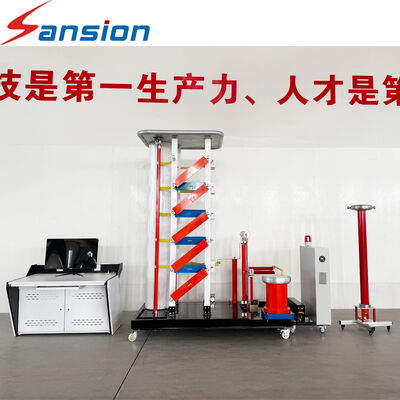

Customized Lightning Impulse High Voltage Test System Complete IEC Impulse Generator Solution for Power Transformer, Cable, GIS and High Voltage Test Laboratory

Product Description

The Customized Lightning Impulse High Voltage Test System is designed for customers requiring a complete high-voltage impulse testing solution based on specific test objects and laboratory requirements.

Because different transformers, cables, GIS systems and other high-voltage devices have different voltage levels, insulation structures and test requirements, the system can be configured around the customer's actual testing application.

Customizable Configuration

• Output voltage range
• Generator energy
• Number of stages
• Waveform types
• Positive and negative polarity
• Full-wave configuration
• Chopped-wave configuration
• Switching impulse configuration
• Voltage divider range
• Measurement accuracy
• Control method
• Automatic test sequence
• Data acquisition
• Waveform analysis
• Test report format
• Remote operation
• Laboratory safety interlock

Complete Testing Capability

Depending on the final configuration, the system can support:

• Lightning impulse test
• Transformer impulse withstand test
• Chopped-wave test
• Switching impulse test
• Cable impulse test
• GIS impulse test
• Arrester test
• Insulator test
• High-voltage dielectric testing
• Automatic waveform analysis
