Modular High Voltage Impulse Voltage Generator Customizable Lightning Impulse Test Equipment from 110kV to Multi Megavolt Power System Testing

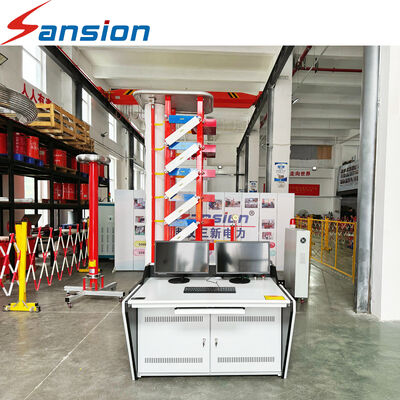

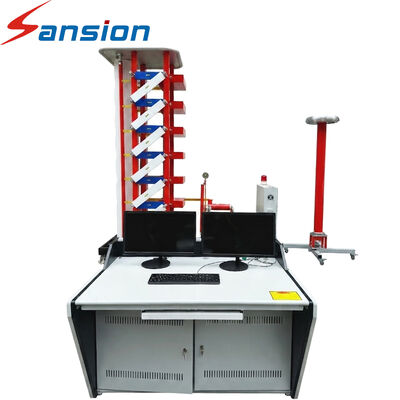

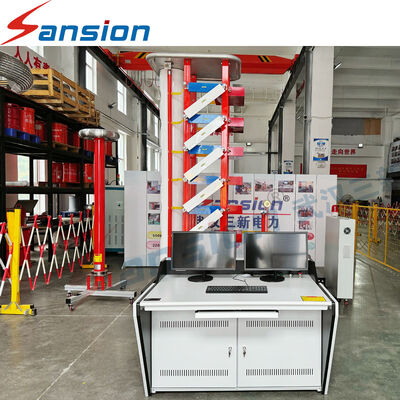

Large Image : Modular High Voltage Impulse Voltage Generator Customizable Lightning Impulse Test Equipment from 110kV to Multi Megavolt Power System Testing

Product Details:

Place of Origin:	China
Brand Name:	Sansion
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXCY

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	T/T,L/C

Contact Now Chat Now

Modular High Voltage Impulse Voltage Generator Customizable Lightning Impulse Test Equipment from 110kV to Multi Megavolt Power System Testing

Description

Impulse Capacitance:	0.0278~0.5 μF	Total Impulse Capacitance:	0.0278~0.5 μF
Stage Voltage:	±100 ~ ±200 KV	Number Of Stages:	1 To 24 Stages
Energy Range:	7.31 ~ 320 KJ	Voltage Range:	±100kV ~ ±4800kV
Highlight:	Modular High Voltage Impulse Generator , Customizable Lightning Impulse Test Equipment , Multi Megavolt Power System Testing

Product Description

The Modular High Voltage Impulse Voltage Generator is designed for customers who require different voltage and energy ratings for different high-voltage testing applications.

A modular stage structure allows the generator configuration to be adapted to the required test voltage and energy level.

This makes the system suitable for applications ranging from laboratory testing to large power transformer and high-voltage equipment testing.

Industry products range from relatively compact systems to multi-megavolt impulse installations, with actual capability depending on stage voltage, stage energy and the number of generator stages.

Customizable Parameters

Rated output voltage
Number of generator stages
Stage voltage
Energy per stage
Total stored energy
Positive/negative polarity
Waveform type
Chopping device
Voltage divider
Measurement system
Control system
Automation level

Applications

Power transformers
HV cables
GIS
Surge arresters
Bushings
Insulators
Electrical research
High-voltage laboratories

FAQ

Q: Can the voltage rating be customized?

A: Yes. The generator configuration can be selected according to the required test voltage and energy.

Q: Can the system be upgraded later?

A: Depending on the original design, modular configurations may allow additional stages or functional upgrades.
