Transformer Lightning Impulse Test System High Precision Impulse Voltage Generator with Automatic Measurement, Waveform Comparison and Pass Fail Analysis

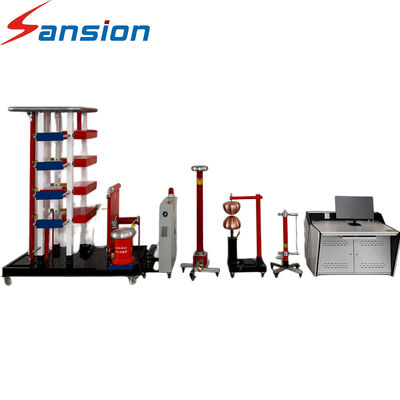

Large Image : Transformer Lightning Impulse Test System High Precision Impulse Voltage Generator with Automatic Measurement, Waveform Comparison and Pass Fail Analysis

Product Details:

Place of Origin:	China
Brand Name:	Sansion
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXCY

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	T/T,L/C

Contact Now Chat Now

Transformer Lightning Impulse Test System High Precision Impulse Voltage Generator with Automatic Measurement, Waveform Comparison and Pass Fail Analysis

Description

Impulse Capacitance:	0.0278~0.5 μF	Total Impulse Capacitance:	0.0278~0.5 μF
Stage Voltage:	±100 ~ ±200 KV	Number Of Stages:	1 To 24 Stages
Energy Range:	7.31 ~ 320 KJ	Voltage Range:	±100kV ~ ±4800kV
Highlight:	Transformer lightning impulse test system , High precision impulse voltage generator , Automatic measurement impulse voltage generator

Product Description

The Transformer Lightning Impulse Test System is developed for accurate transformer impulse testing and detailed waveform evaluation.

The system combines a high-voltage impulse generator with a digital impulse measurement and analysis platform.

During testing, the waveform can be displayed and recorded in real time. Key waveform parameters can be automatically calculated, and multiple impulse records can be compared to help engineers identify waveform differences.

Advanced Measurement Functions

Peak voltage measurement
Wavefront time calculation
Time-to-half-value calculation
Waveform recording
Waveform overlay comparison
Reference waveform comparison
Local waveform zoom
Waveform translation
Data storage
Historical test review
Test report generation

Marketing Advantages

High measurement accuracy
Real-time waveform analysis
Automated test records
Easy waveform comparison
Faster report generation
Suitable for transformer factory testing
Improved test traceability

FAQ

Q: Can the system compare multiple waveforms?

A: Yes. Digital impulse measurement software can support waveform comparison and overlay functions.

Q: Can the test result be automatically evaluated?

A: Pass/fail evaluation can be configured according to the defined test procedure and acceptance criteria.

Q: Can the waveform data be saved permanently?

A: Yes. Test waveforms and related parameters can be stored in the system database or exported according to the software configuration.
