50kV AC Withstand Voltage Test Equipment 20kVA High Voltage Testing System for Electrical Product Factory Inspection and Dielectric Testing

20kVA/50kV AC Withstand Voltage Test System

The 20kVA/50kV AC Withstand Voltage Test Equipment provides a high-voltage AC testing solution for checking whether electrical products can withstand specified voltage stress before delivery or operation. It is commonly applied in manufacturing plants, testing departments, and technical laboratories where insulation reliability needs to be verified.

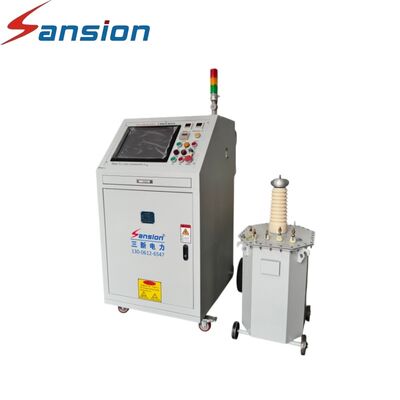

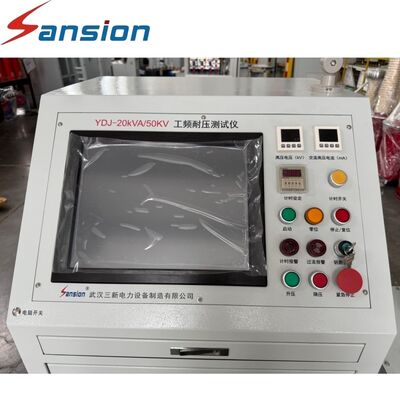

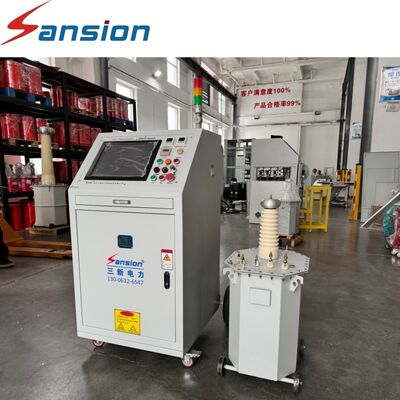

The equipment combines an Oil Type High Voltage Test Transformer with a dedicated Control Console. The oil immersed transformer is responsible for generating the required AC high voltage, while the console allows operators to control the test procedure and adjust output parameters. The 20kVA configuration provides a balanced solution for various electrical insulation testing applications.

• Designed for Factory Testing — Helps manufacturers perform insulation quality inspection before shipment.
• 20kVA Rated Power — Suitable for electrical equipment requiring higher test capacity.
• Reliable Oil Insulation System — Supports stable transformer operation during testing.
• Practical Testing Configuration — Combines control unit and high-voltage transformer into one solution.
• Suitable for Repeated Tests — Designed for routine production and inspection processes.
• Wide Testing Compatibility — Applicable to various electrical components within rated conditions.

1. Electrical equipment manufacturing
2. Transformer production testing
3. Switchgear quality inspection
4. Cable accessories testing
5. Laboratory dielectric evaluation
6. Electrical maintenance departments

Q1: Which products can be tested with this equipment?

A: It can be used for suitable transformers, switchgear, cables, insulation components, and other electrical products.

Q2: Why choose an oil immersed test transformer?

A: The oil immersed structure provides insulation and cooling performance required for high-voltage testing.

Q3: Is this equipment suitable for production lines?

A: Yes. It is suitable for routine insulation inspection in electrical manufacturing environments.

Q4: Does Sansion Power provide customized solutions?

A: Yes. Customized voltage, capacity, and control configurations are available.
